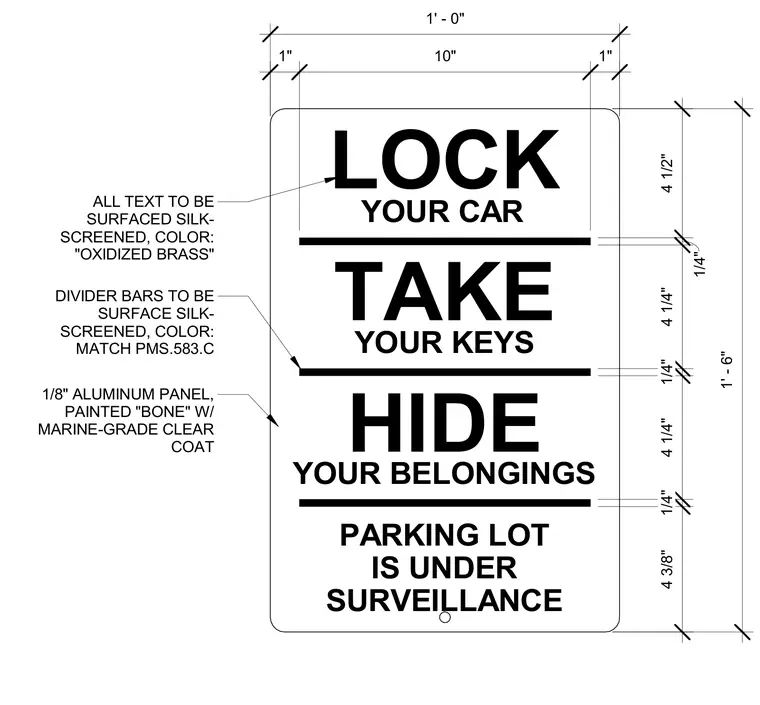

An one-eighth-inch aluminum panel finished with a bone paint coating and a marine-grade clear coat serves as the primary substrate. All text is surface silk-screened in oxidized brass, while the divider bars are surface silk-screened to match PMS.583.C.
LOCK TAKE HIDE YOUR CAR YOUR KEYS YOUR BELONGINGS PARKING LOT IS UNDER SURVEILLANCE 1" 10" 1" 1' - 0" 4 3/8" 1/4" 4 1/4" 1/4" 4 1/4" 1/4" 4 1/2" 1' - 6" ALL TEXT TO BE SURFACED SILK- SCREENED, COLOR: "OXIDIZED BRASS" DIVIDER BARS TO BE SURFACE SILK- SCREENED, COLOR: MATCH PMS.583.C 1/8" ALUMINUM PANEL, PAINTED "BONE" W/ MARINE-GRADE CLEAR COAT
