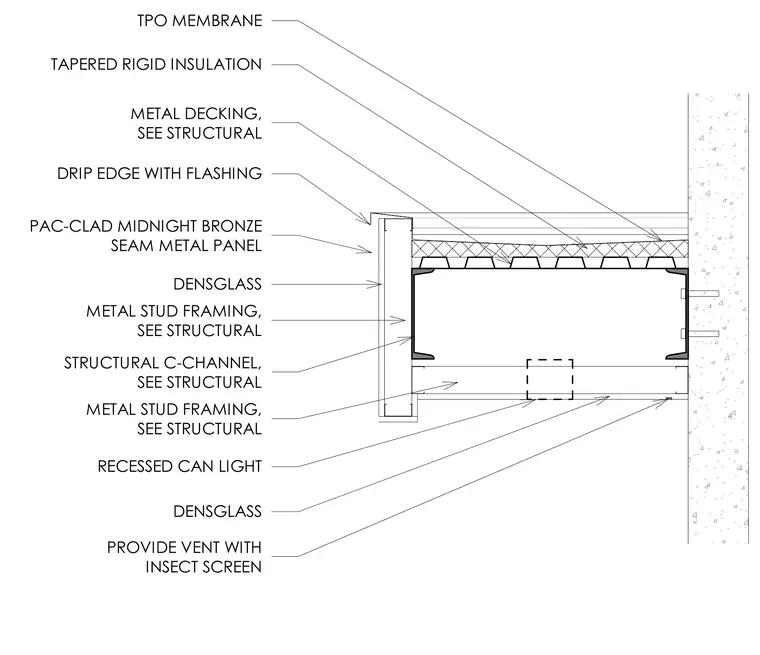

The assembly is built around a structural C-channel and metal stud framing anchored to the building wall. Tapered rigid insulation over metal decking supports a TPO roofing membrane at the top surface. The fascia and soffit are finished with PAC-CLAD midnight bronze seam metal panels over DensGlass sheathing and metal stud framing. A drip edge with flashing caps the outer perimeter, and a recessed can light and vent with insect screen are integrated into the soffit.
DRIP EDGE WITH FLASHING TAPERED RIGID INSULATION METAL DECKING, SEE STRUCTURAL TPO MEMBRANE RECESSED CAN LIGHT STRUCTURAL C-CHANNEL, SEE STRUCTURAL METAL STUD FRAMING, SEE STRUCTURAL DENSGLASS PAC-CLAD MIDNIGHT BRONZE SEAM METAL PANEL METAL STUD FRAMING, SEE STRUCTURAL PROVIDE VENT WITH INSECT SCREEN DENSGLASS
