The suspended wood ceiling screen features a typical ten-blade panel unit spanning two feet with one-inch by two-inch wide CDX plywood strips spaced at twelve inches on center and painted white. The wood screen is supported by fifteen-sixteenths inch wide by one-and-a-half inch high by zero-point-zero-twenty-inch main T-bar runners spaced at twenty-four inches on center. The main T-bar grid is suspended from the overhead structure by hanger wires spaced at a maximum of two feet on center along the main tees.

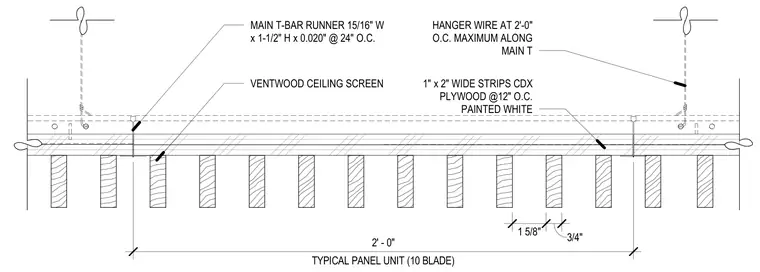

TYPICAL PANEL UNIT (10 BLADE) 2' - 0" 1 5/8" 3/4" MAIN T-BAR RUNNER 15/16" W x 1-1/2" H x 0.020" @ 24" O.C. VENTWOOD CEILING SCREEN 1" x 2" WIDE STRIPS CDX PLYWOOD @12" O.C. PAINTED WHITE HANGER WIRE AT 2'-0" O.C. MAXIMUM ALONG MAIN T
