Architectural · A-VNHZM

Smoothie and Coffee Service Bar Section

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall Composite

Elements

Floors / Slabs Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Bolted Connection

About this detail

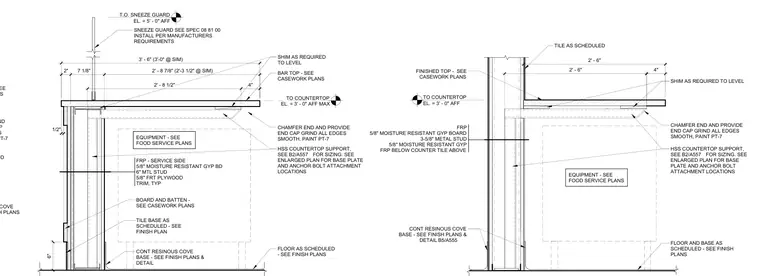

A commercial service bar section features cold-formed metal stud framing clad in five-eighths inch moisture-resistant gypsum board and fiberglass reinforced plastic on the service side, supplemented by fire-retardant treated plywood trim and board and batten finishes. Hollow structural section countertop supports leveled with shims carry the finished bar top, featuring chamfered ends with end caps, ground smooth edges, and specified paint finishes. The service counter reaches a maximum elevation of three feet above finished floor, while an associated sneeze guard extends to an elevation of five feet above finished floor. Continuous resinous cove bases and tile bases interface with the scheduled flooring at the base of the partition.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
