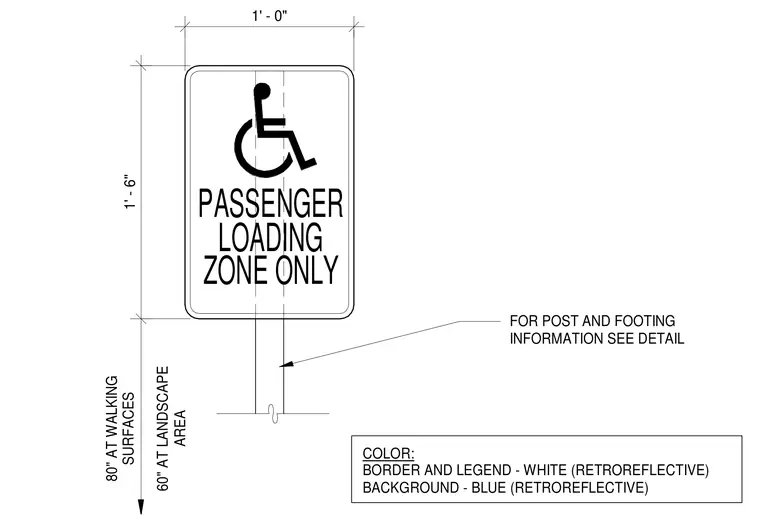

An accessible passenger loading zone sign measures one foot by one foot six inches. The sign mounts above grade with a clearance height of eighty inches at walking surfaces and sixty inches at landscape areas. The border and legend are white retroreflective material on a blue retroreflective background. Post and footing information is referenced to a separate detail.
1' - 6" 1' - 0" PASSENGER LOADING ZONE ONLY FOR POST AND FOOTING INFORMATION SEE DETAIL 80" AT WALKING SURFACES 60" AT LANDSCAPE AREA COLOR: BORDER AND LEGEND - WHITE (RETROREFLECTIVE) BACKGROUND - BLUE (RETROREFLECTIVE)
