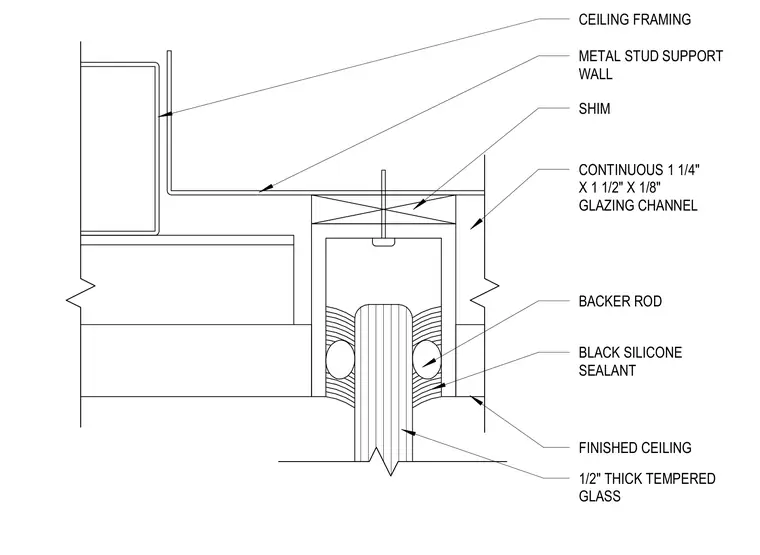

One-half inch thick tempered glass extends into a continuous 1 1/4 inch by 1 1/2 inch by 1/8 inch glazing channel anchored below the ceiling framing. Shims level the metal channel against the structural framing, while a metal stud support wall ties into the assembly. Backer rods and black silicone sealant seal the glass joints on both sides where they meet the finished ceiling line.
CEILING FRAMING METAL STUD SUPPORT WALL SHIM CONTINUOUS 1 1/4" X 1 1/2" X 1/8" GLAZING CHANNEL BACKER ROD BLACK SILICONE SEALANT FINISHED CEILING 1/2" THICK TEMPERED GLASS
