A structural steel beam frames into a rigid frame column web using a bolted shear tab connection with no slotted holes. The shear tab extends down to the bottom-most continuity plate, with an additional bolt added when the dimension exceeds four and a half inches. Continuity plates are welded across the column web aligned with the beam flanges. A half-inch plate and specific fillet weld sizes apply depending on whether the connection serves shallower beams like W8 through W14 or deeper beams starting at W16.

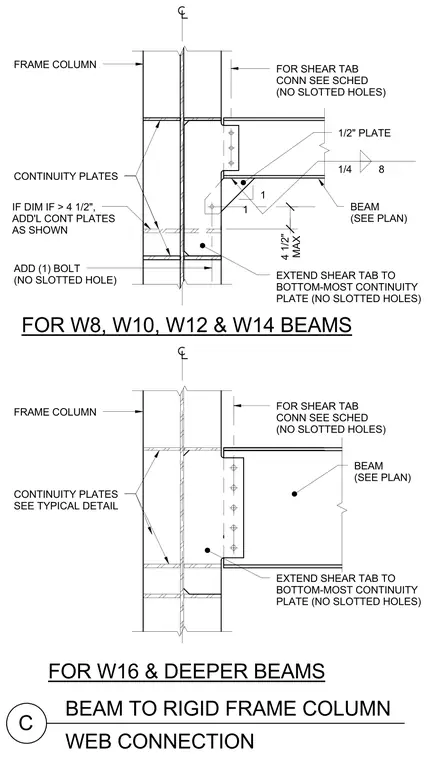

BEAM TO RIGID FRAME COLUMN C WEB CONNECTION FOR W16 & DEEPER BEAMS FOR W8, W10, W12 & W14 BEAMS FRAME COLUMN BEAM (SEE PLAN) 1 1 EXTEND SHEAR TAB TO BOTTOM-MOST CONTINUITY PLATE (NO SLOTTED HOLES) ADD (1) BOLT (NO SLOTTED HOLE) BEAM (SEE PLAN) 1/2" PLATE CONTINUITY PLATES FRAME COLUMN FOR SHEAR TAB CONN SEE SCHED (NO SLOTTED HOLES) CONTINUITY PLATES SEE TYPICAL DETAIL 1/4 8 EXTEND SHEAR TAB TO BOTTOM-MOST CONTINUITY PLATE (NO SLOTTED HOLES) FOR SHEAR TAB CONN SEE SCHED (NO SLOTTED HOLES) MAX 4 1/2" IF DIM IF > 4 1/2", ADD'L CONT PLATES AS SHOWN
