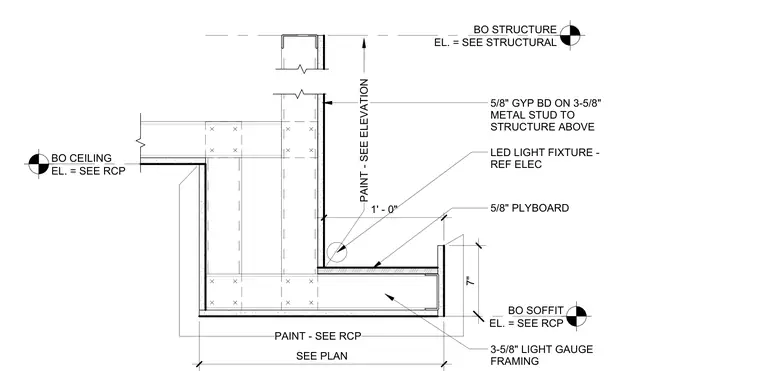

This interior soffit detail consists of five-eighths-inch gypsum board on three-and-five-eighths-inch metal studs extending to the structure above. A five-eighths-inch plyboard forms the horizontal surface backed by three-and-five-eighths-inch light gauge metal framing. A seven-inch drop incorporates an LED light fixture referenced to electrical drawings. Elevations for the bottom of structure, bottom of ceiling, and bottom of soffit reference structural and reflected ceiling plans.
BO SOFFIT EL. = SEE RCP BO STRUCTURE EL. = SEE STRUCTURAL BO CEILING EL. = SEE RCP 5/8" GYP BD ON 3-5/8" METAL STUD TO STRUCTURE ABOVE 5/8" PLYBOARD 3-5/8" LIGHT GAUGE FRAMING 1' - 0" LED LIGHT FIXTURE - REF ELEC 7" SEE PLAN PAINT - SEE RCP PAINT - SEE ELEVATION
