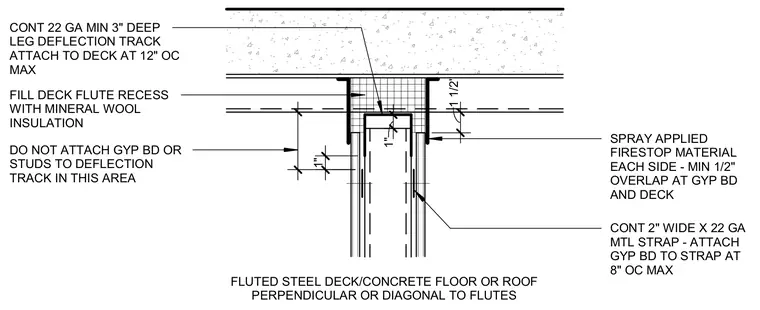

A continuous twenty-two gauge minimum three-inch deep leg deflection track attaches to the overhead concrete-filled fluted steel deck at twelve inches on center maximum. The deck flute recesses fill completely with mineral wool insulation. The gypsum board and studs remain unattached to the deflection track within the designated clearance zone. Continuous two-inch wide by twenty-two gauge metal straps receive the gypsum board fastened at eight inches on center maximum. Spray-applied firestop material applies to each side, maintaining a minimum one-half inch overlap onto the gypsum board and the deck.
1" 1" 4 47/256" 1 1/2" SPRAY APPLIED FIRESTOP MATERIAL EACH SIDE - MIN 1/2" OVERLAP AT GYP BD AND DECK CONT 2" WIDE X 22 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX FILL DECK FLUTE RECESS WITH MINERAL WOOL INSULATION FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PERPENDICULAR OR DIAGONAL TO FLUTES
