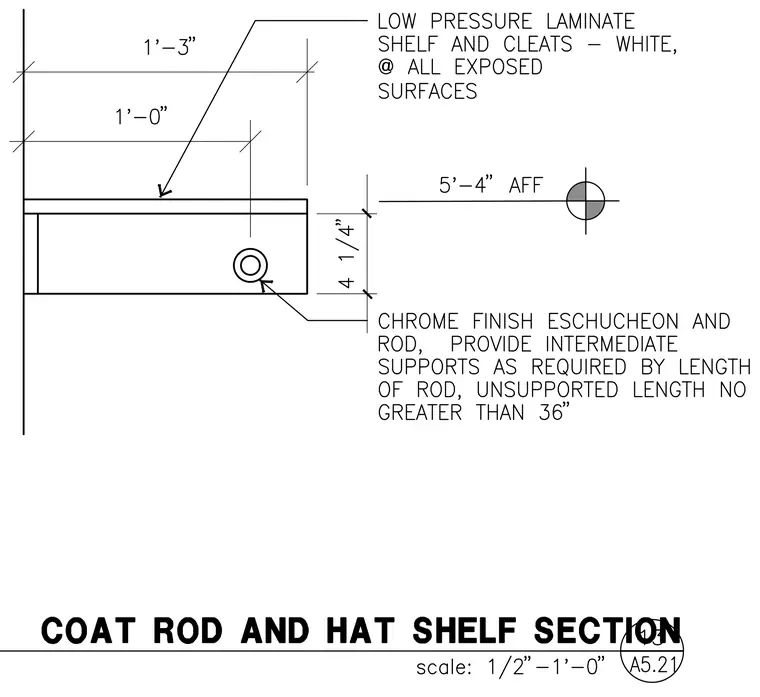

The assembly features a low pressure laminate white shelf and cleats at all exposed surfaces positioned one foot and three inches above a chrome finish eschucheon and rod. The coat rod is located five feet and four inches above finished floor and requires intermediate supports as needed by the length of the rod with an unsupported length no greater than thirty six inches. The shelf has a depth of one foot and three inches with the rod mounted four and one quarter inches below the shelf underside.
