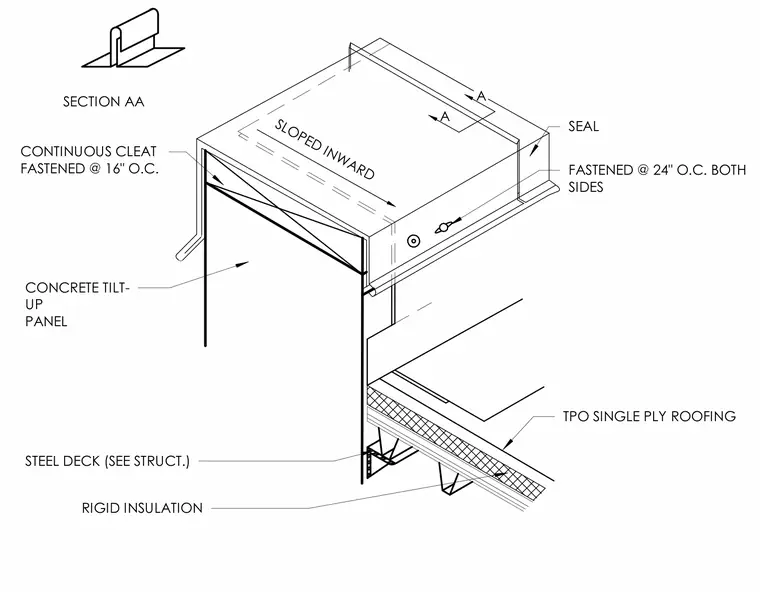

An isometric detail of a roof coping and parapet assembly supported by a concrete tilt-up wall panel and a steel deck sized per structural plans. A TPO single-ply roofing membrane covers the assembly, underlaid by rigid insulation. The metal coping cap is sloped inward and secured with a continuous cleat fastened at sixteen inches on center. Fasteners are spaced at twenty-four inches on center on both sides, with sealant applied at the joints.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
