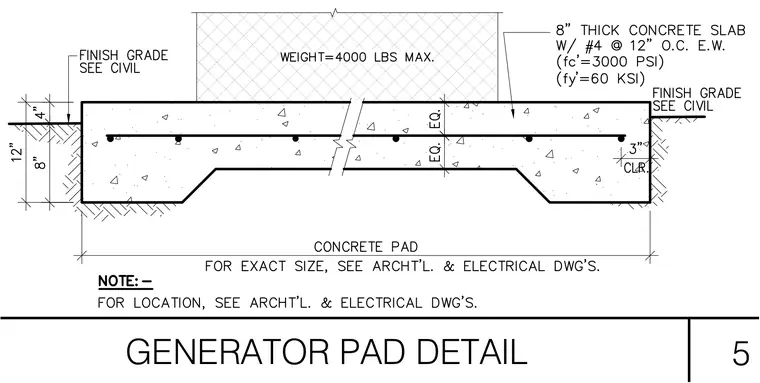

An eight-inch thick concrete slab with a compressive strength of three thousand pounds per square inch and a reinforcement yield strength of sixty kilopounds per square inch forms the generator pad. The slab is reinforced with number four bars spaced at twelve inches on center each way, maintaining a three-inch clear cover. The pad features thickened edges extending twelve inches below finish grade to distribute loads into the subgrade. Finish grade elevations and exact pad dimensions are coordinated per civil, architectural, and electrical drawings for a maximum equipment weight of four thousand pounds.
