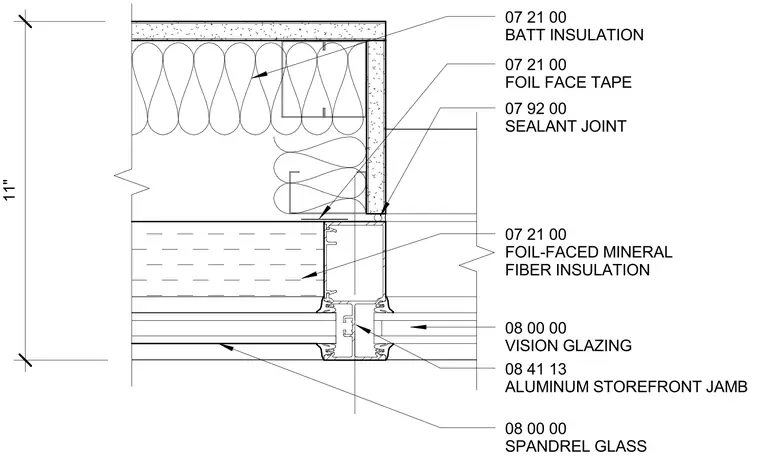

An aluminum storefront jamb connects to vision glazing and spandrel glass assemblies with an intervening sealant joint. Foil-faced mineral fiber insulation fills the framing cavity, while foil face tape seals the vapor barrier. Additional batt insulation lines the adjacent wall framing cavity. The assembly maintains a thermal break and moisture seal around the window opening.
08 00 00 VISION GLAZING 08 41 13 ALUMINUM STOREFRONT JAMB 11" 07 21 00 FOIL-FACED MINERAL FIBER INSULATION 07 21 00 FOIL FACE TAPE 07 92 00 SEALANT JOINT 08 00 00 SPANDREL GLASS 07 21 00 BATT INSULATION
