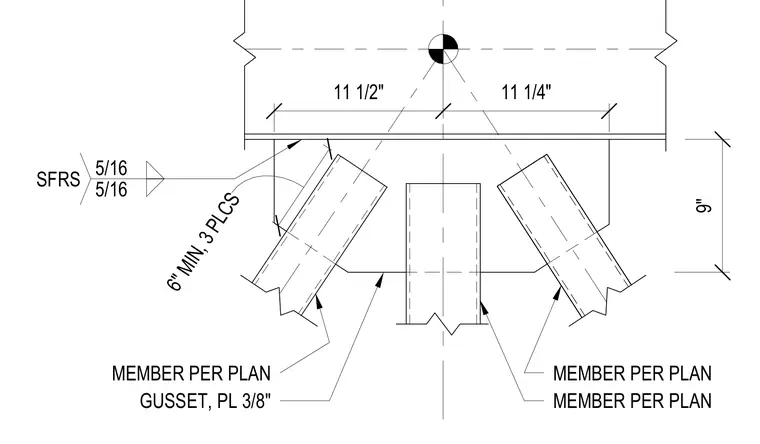

Three structural members connect to a common gusset plate measuring three-eighths of an inch thick. The members are sized per plan and welded to the gusset plate using five-sixteenth-inch fillet welds on three places with a six-inch minimum dimension. Dimensions of eleven and one-half inches and eleven and one-quarter inches locate the member work points along the supporting structure.
5/16 5/16 SFRS MEMBER PER PLAN MEMBER PER PLAN GUSSET, PL 3/8" MEMBER PER PLAN 9" 6" MIN, 3 PLCS 11 1/2" 11 1/4"
