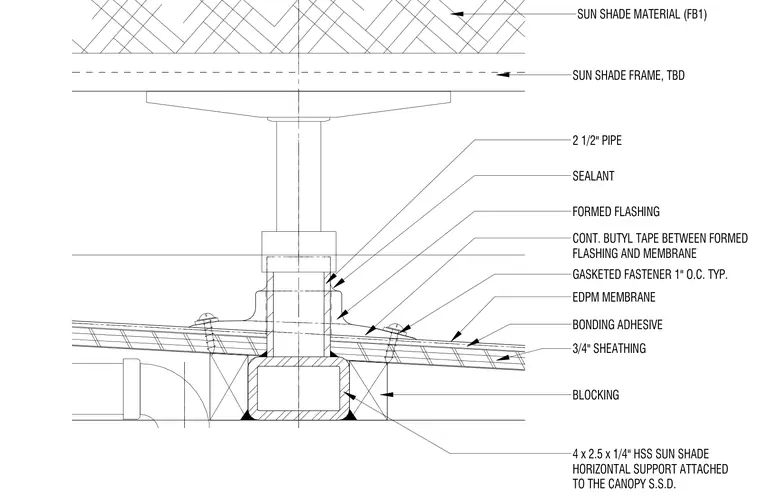

A 4x2.5x1/4-inch hollow structural section sun shade horizontal support is secured over wood blocking and sheathed with three-quarter-inch wood panels. An ethylene propylene diene monomer membrane is adhered to the sheathing using bonding adhesive and secured with gasketed fasteners spaced at one inch on center. A two-and-a-half-inch pipe penetrates the membrane through a formed flashing sealed with continuous butyl tape and sealant. A sun shade frame and sun shade material are mounted above on a vertical support post.
4 x 2.5 x 1/4" HSS SUN SHADE HORIZONTAL SUPPORT ATTACHED TO THE CANOPY S.S.D. SUN SHADE MATERIAL (FB1) SUN SHADE FRAME, TBD 3/4" SHEATHING EDPM MEMBRANE BONDING ADHESIVE BLOCKING CONT. BUTYL TAPE BETWEEN FORMED FLASHING AND MEMBRANE FORMED FLASHING SEALANT GASKETED FASTENER 1" O.C. TYP. 2 1/2" PIPE
