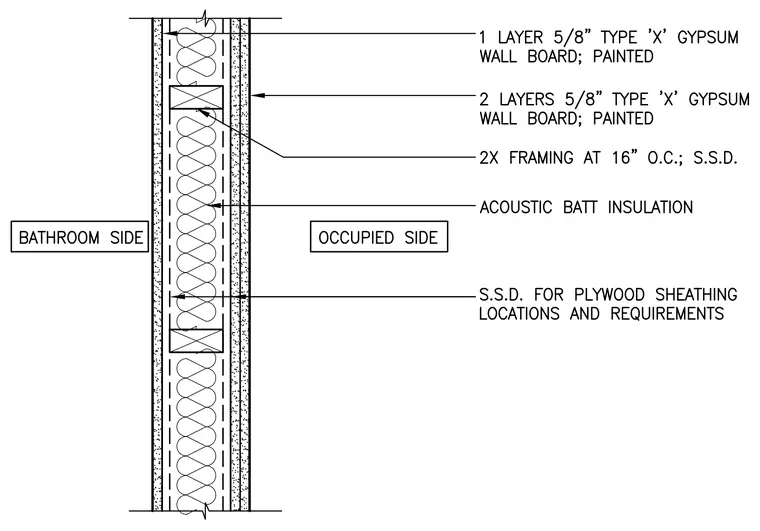

This interior partition wall assembly consists of two-by framing spaced at sixteen inches on center with structural sound design requirements. The bathroom side is finished with one layer of five-eighths inch Type X gypsum wall board, painted. The occupied side is finished with two layers of five-eighths inch Type X gypsum wall board, painted. Acoustic batt insulation fills the cavity between the stud framing. Structural sound design requirements apply for plywood sheathing locations and requirements.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
