West Wall Column Grid Plan Detail at Gym Floor

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Walls Doors Windows Curtain Walls Roofs Canopies Floors / Slabs Foundations / Footings Insulation Millwork / Casework Site / Paving Connections / Plates Roof / Floor Openings

Connections

Base Plate / Anchorage HSS Connection Welded Connection Bolted Connection

About this detail

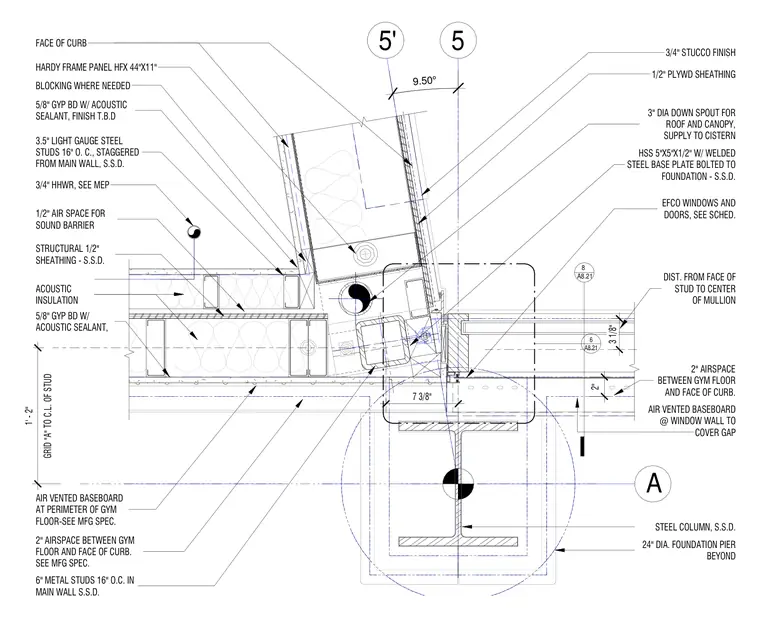

This plan detail captures the intersection at grid line 5, 5', and A along the west exterior wall. The structural assembly incorporates an HSS 5x5x1/2 hollow structural section column with a welded steel base plate bolted to the foundation, alongside a 24-inch diameter foundation pier shown beyond. The exterior wall features 3.5-inch light gauge steel studs at 16 inches on center staggered from the main wall, 6-inch metal studs at 16 inches on center in the main wall, structural 1/2-inch sheathing, 3/4-inch stucco finish, and a Hardy Frame panel HFX measuring 44 by 11 inches. Interior partitions consist of 5/8-inch gypsum board with acoustic sealant and acoustic insulation. The assembly accommodates EFCO windows and doors per schedule, with a three-inch diameter downspout for the roof and canopy supplying a cistern. Additional components include a 3/4-inch HHWR per mechanical drawings, an air-vented baseboard at the perimeter of the gym floor with a two-inch airspace between the gym floor and the face of the curb, and a 1/2-inch air space for a sound barrier.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
