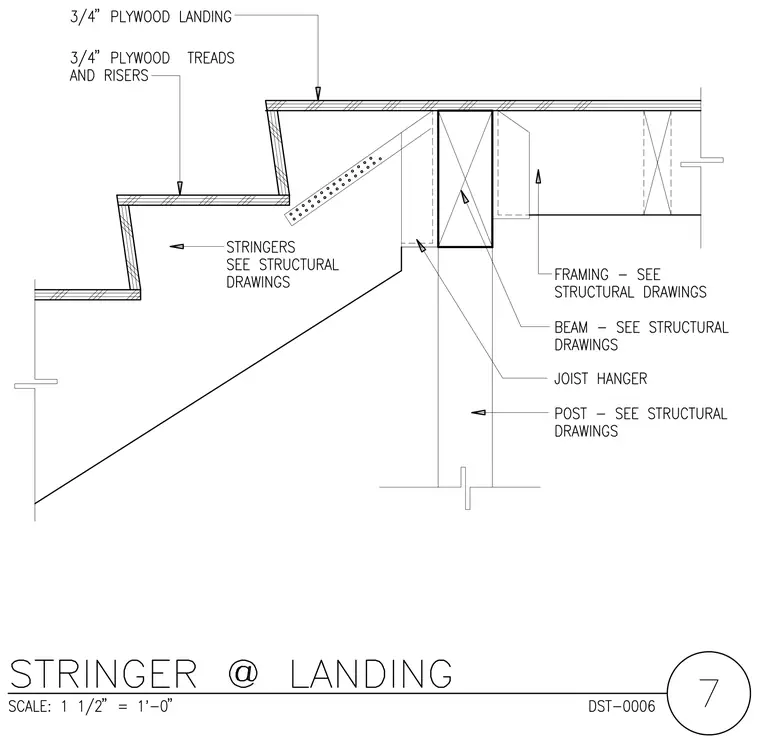

A wooden stair stringer connects to a landing framed with three-quarter-inch plywood treads, risers, and landing surfaces. The stringer ties into a supporting beam and post assembly via a joist hanger. Framing members are sized per the structural drawings. Additional stringer support details are coordinated with the structural engineer.
