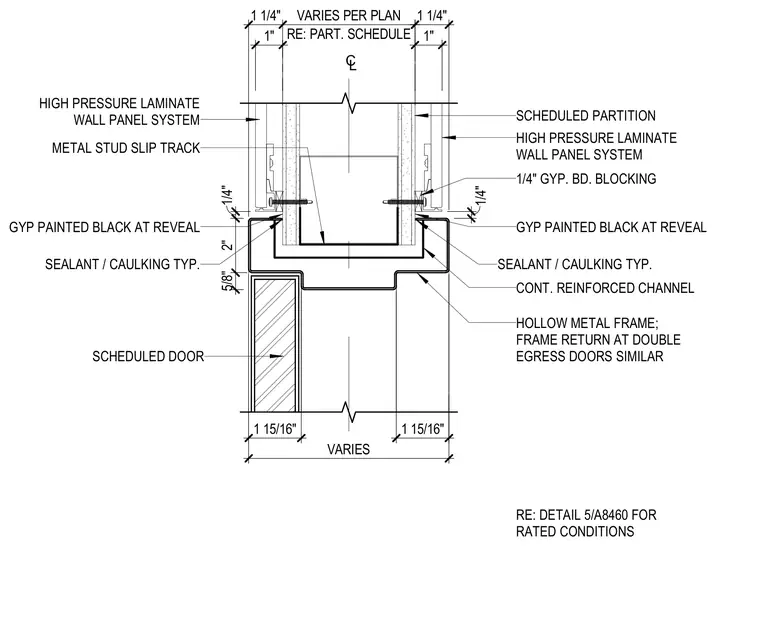

This interior partition detail shows a hollow metal door frame return at a double egress door condition beneath a scheduled partition metal stud slip track. High pressure laminate wall panel systems finish both sides of the partition over one-quarter-inch gypsum board blocking. A continuous reinforced channel supports the frame profile with gypsum board painted black at the reveals. Typical sealant and caulking are applied at the frame and panel junctions.
CONT. REINFORCED CHANNEL HOLLOW METAL FRAME; FRAME RETURN AT DOUBLE EGRESS DOORS SIMILAR CL 1 15/16" VARIES SCHEDULED PARTITION METAL STUD SLIP TRACK 1 1/4" 5/8" 2" 1/4" HIGH PRESSURE LAMINATE WALL PANEL SYSTEM SEALANT / CAULKING TYP. SCHEDULED DOOR 1 15/16" 1 1/4" RE: PART. SCHEDULE VARIES PER PLAN HIGH PRESSURE LAMINATE WALL PANEL SYSTEM 1/4" GYP. BD. BLOCKING 1/4" 1" 1" GYP PAINTED BLACK AT REVEAL GYP PAINTED BLACK AT REVEAL SEALANT / CAULKING TYP. RE: DETAIL 5/A8460 FOR RATED CONDITIONS
