Architectural · A-VKNZM

Wood Slat Ceiling at Perimeter Window Shade and Diffuser

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Windows Curtain Walls Facades / Cladding Ceilings

About this detail

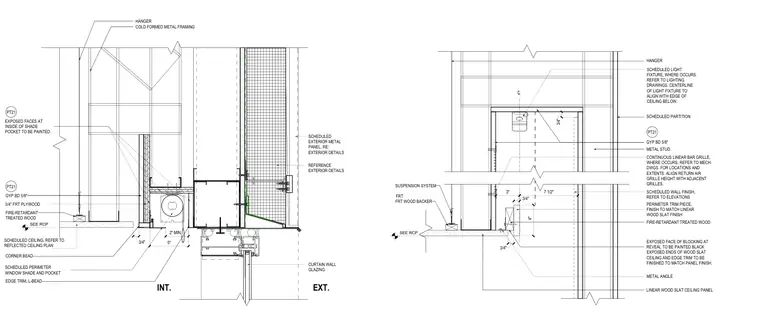

Perimeter transition of a linear wood slat ceiling adjacent to an exterior curtain wall glazing system. Cold-formed metal framing and hangers suspend the assembly, incorporating a fire-retardant treated plywood shade pocket with a painted interior finish and edge trim. A continuous linear bar grille is integrated into the ceiling plenum alongside scheduled lighting fixtures aligned with the ceiling edge. Exposed blocking and end pieces are finished to match the wood slats, with reveals painted black.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
