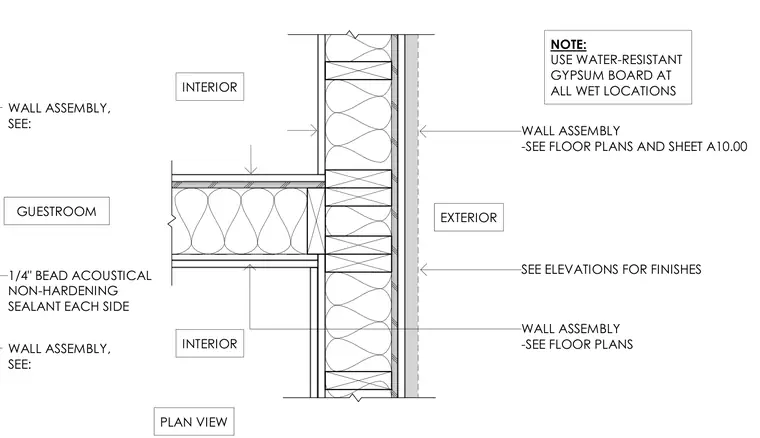

An interior partition wall abuts an exterior wall framing assembly with a one-quarter-inch bead of acoustical non-hardening sealant applied on each side. The exterior wall features layered gypsum board and batt insulation within the stud cavity. Water-resistant gypsum board is specified at all wet locations. Interior wall framing ties into the exterior stud cavity with referenced sheet assemblies.
GUESTROOM WALL ASSEMBLY, SEE: WALL ASSEMBLY, SEE: 1/4" BEAD ACOUSTICAL NON-HARDENING SEALANT EACH SIDE EXTERIOR NOTE: USE WATER-RESISTANT GYPSUM BOARD AT ALL WET LOCATIONS INTERIOR INTERIOR WALL ASSEMBLY -SEE FLOOR PLANS AND SHEET A10.00 . WALL ASSEMBLY -SEE FLOOR PLANS . PLAN VIEW SEE ELEVATIONS FOR FINISHES
