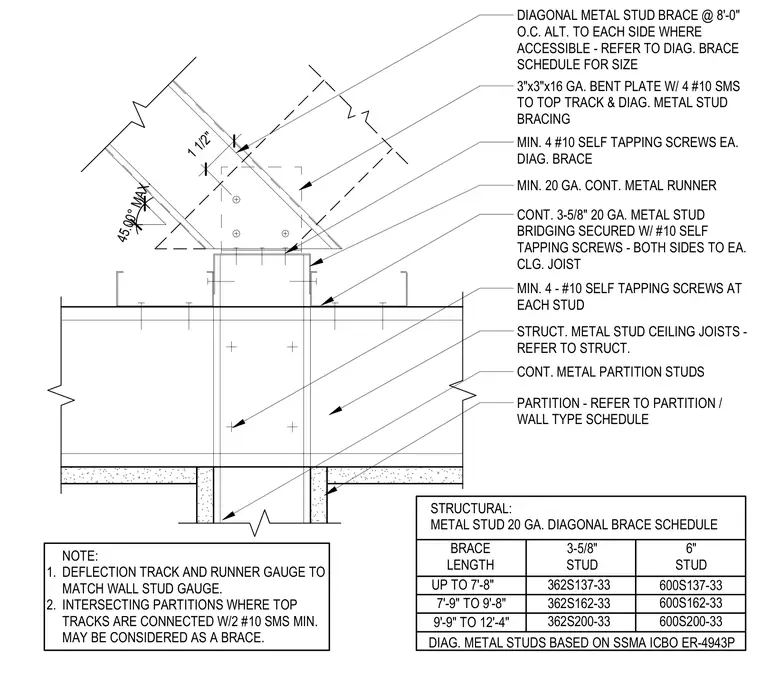

A diagonal metal stud brace is positioned at eight feet on center and alternated to each side where accessible, tied back at a maximum forty-five-degree angle. A three-inch by three-inch by sixteen-gauge bent plate connects the diagonal brace to the top track using a minimum of four number ten self-tapping screws. The continuous metal runner and ceiling joists receive continuous three-and-five-eighths-inch twenty-gauge metal stud bridging secured with number ten self-tapping screws on both sides. Partition studs and structural metal stud ceiling joists tie into the assembly per the structural and wall type schedules.
STRUCTURAL: METAL STUD 20 GA. DIAGONAL BRACE SCHEDULE BRACE LENGTH 3-5/8" STUD 6" STUD UP TO 7'-8" 362S137-33 362S162-33 362S200-33 600S200-33 600S162-33 600S137-33 7'-9" TO 9'-8" 9'-9" TO 12'-4" DIAG. METAL STUDS BASED ON SSMA ICBO ER-4943P 1 1/2" 45.00° MAX. DIAGONAL METAL STUD BRACE @ 8'-0" O.C. ALT. TO EACH SIDE WHERE ACCESSIBLE - REFER TO DIAG. BRACE SCHEDULE FOR SIZE 3"x3"x16 GA. BENT PLATE W/ 4 #10 SMS TO TOP TRACK & DIAG. METAL STUD BRACING MIN. 4 #10 SELF TAPPING SCREWS EA. DIAG. BRACE MIN. 20 GA. CONT. METAL RUNNER CONT. 3-5/8" 20 GA. METAL STUD BRIDGING SECURED W/ #10 SELF TAPPING SCREWS - BOTH SIDES TO EA. CLG. JOIST MIN. 4 - #10 SELF TAPPING SCREWS AT EACH STUD STRUCT. METAL STUD CEILING JOISTS - REFER TO STRUCT. CONT. METAL PARTITION STUDS PARTITION - REFER TO PARTITION / WALL TYPE SCHEDULE NOTE: DEFLECTION TRACK AND RUNNER GAUGE TO MATCH WALL STUD GAUGE. INTERSECTING PARTITIONS WHERE TOP TRACKS ARE CONNECTED W/2 #10 SMS MIN. MAY BE CONSIDERED AS A BRACE. 1. 2.
