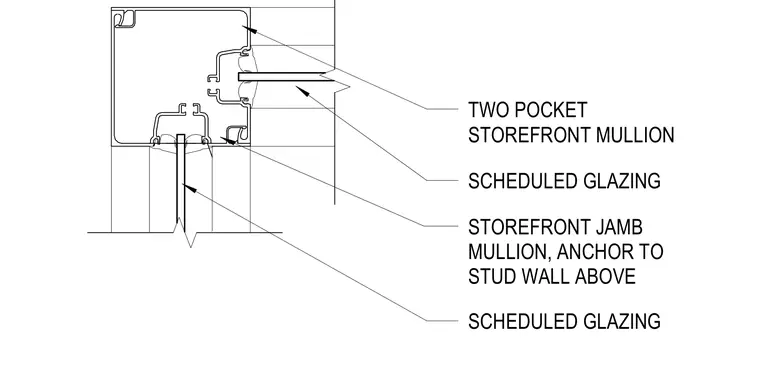

A two-pocket storefront mullion acts as the primary corner jamb member, receiving scheduled glazing units along perpendicular planes. The storefront jamb mullion is anchored back to a stud wall assembly as scheduled. Gaskets and pocket components secure the scheduled glazing within the aluminum framing channels.
TWO POCKET STOREFRONT MULLION SCHEDULED GLAZING STOREFRONT JAMB MULLION, ANCHOR TO STUD WALL ABOVE SCHEDULED GLAZING
