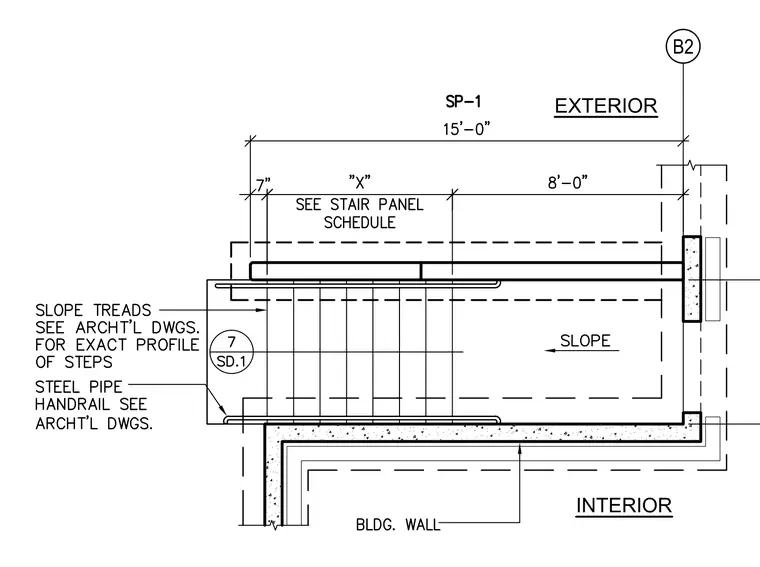

A concrete stair landing plan detail shows an overall length of 15'-0" with an 8'-0" dimension on the interior side and a variable "X" dimension referenced to the stair panel schedule. The assembly includes a building wall on the interior side, an exterior boundary, and a grid line B2 reference at the top right. Slope indicators show the direction of drainage across the landing, with a specific note to slope treads and reference architectural drawings for the exact profile of steps. A steel pipe handrail is also noted for coordination with architectural drawings.
