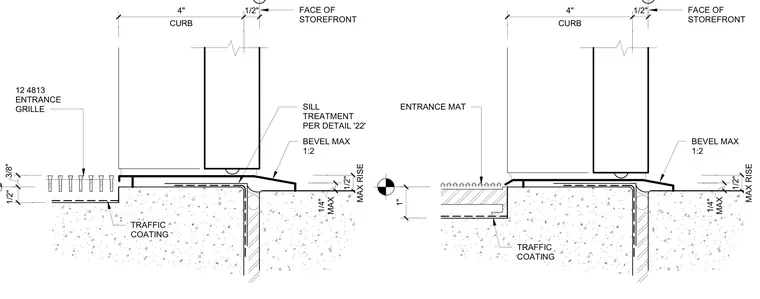

An entrance grille and entrance mat assembly set into a four-inch concrete curb at a slab-on-grade transition. The concrete substrate receives a continuous traffic coating beneath the metal threshold and grating. A bevel with a maximum slope of one-to-two transitions from the storefront face down to the walking surface, maintaining a maximum rise of one-half inch. Sill treatment is detailed per adjacent sheet references.
FACE OF STOREFRONT BEVEL MAX 1:2 1" MAX 1/4" MAX RISE 1/2" CURB 4" 1/2" ENTRANCE MAT TRAFFIC COATING FACE OF STOREFRONT BEVEL MAX 1:2 1/2" 3/8" MAX 1/4" MAX RISE 1/2" CURB 4" 1/2" SILL TREATMENT PER DETAIL '22' 12 4813 ENTRANCE GRILLE TRAFFIC COATING
