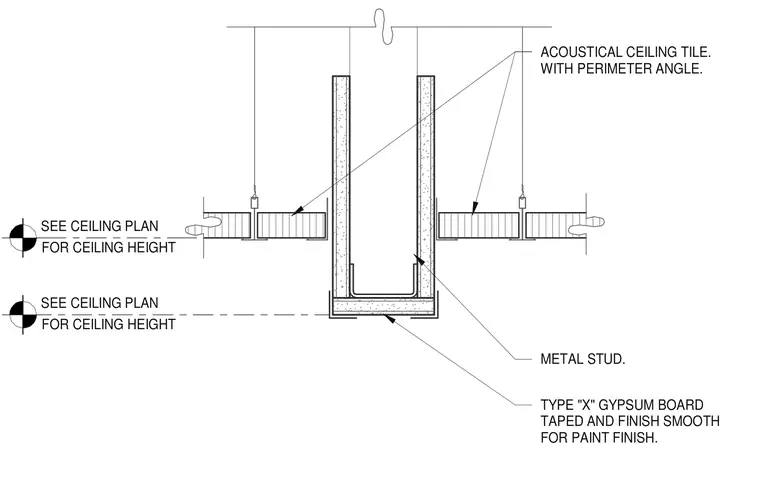

An acoustical ceiling tile system terminates at a framed metal stud partition with type X gypsum board finished smooth for paint. Perimeter angles support the suspended ceiling grid adjacent to the vertical wall framing. Ceiling heights and specific layout dimensions are coordinated per the architectural ceiling plan.
METAL STUD. TYPE "X" GYPSUM BOARD TAPED AND FINISH SMOOTH FOR PAINT FINISH. ACOUSTICAL CEILING TILE. WITH PERIMETER ANGLE. SEE CEILING PLAN FOR CEILING HEIGHT SEE CEILING PLAN FOR CEILING HEIGHT
