Architectural · A-VJTF6

Floor Identification Sign

Elements

About this detail

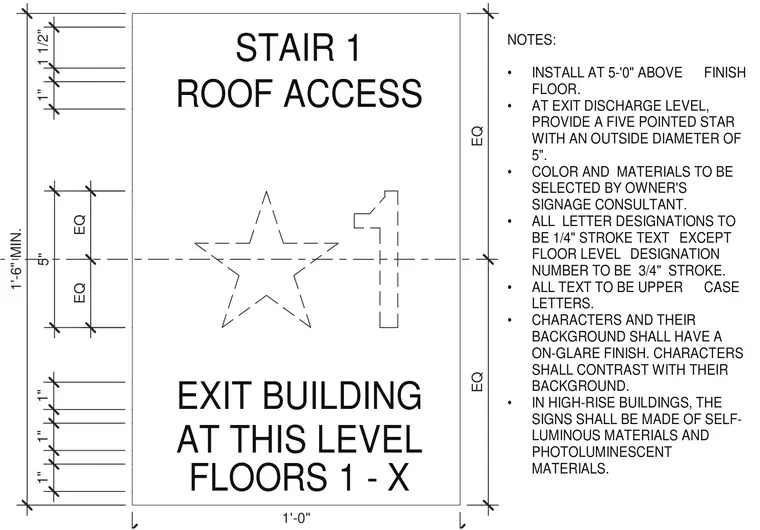

This detail specifies the layout and installation requirements for stair and floor identification signage. The sign is mounted at five feet above the finish floor and features upper-case lettering with non-glare, contrasting background finishes. At the exit discharge level, a five-pointed star with a five-inch outside diameter is included alongside the floor level designation. Letter designations use one-quarter-inch stroke text, while the floor level designation number uses a three-quarter-inch stroke. In high-rise buildings, the signs are constructed from self-luminous and photoluminescent materials.
