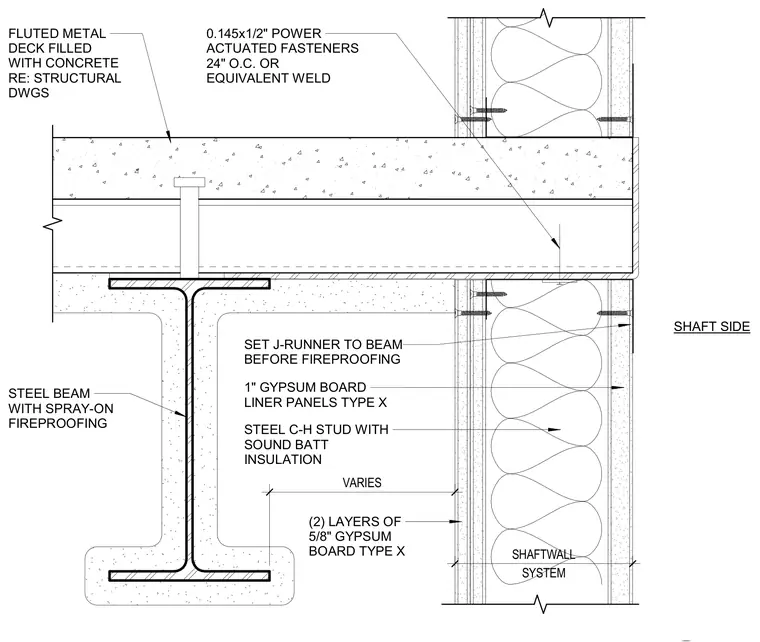

A shaftwall assembly intersects a composite floor slab consisting of a fluted metal deck filled with concrete over a steel beam with spray-on fireproofing. The shaftwall framing utilizes steel C-H studs with sound batt insulation, faced on one side with a J-runner set to the beam before fireproofing and one inch Type X gypsum board liner panels secured by zero-point-one-four-five by one-half inch power-actuated fasteners spaced twenty-four inches on center or by an equivalent weld. The opposite shaft side is finished with two layers of five-eighths inch Type X gypsum board.
1" GYPSUM BOARD LINER PANELS TYPE X 0.145x1/2" POWER ACTUATED FASTENERS 24" O.C. OR EQUIVALENT WELD STEEL C-H STUD WITH SOUND BATT INSULATION (2) LAYERS OF 5/8" GYPSUM BOARD TYPE X SHAFT SIDE SET J-RUNNER TO BEAM BEFORE FIREPROOFING VARIES STEEL BEAM WITH SPRAY-ON FIREPROOFING FLUTED METAL DECK FILLED WITH CONCRETE RE: STRUCTURAL DWGS SYSTEM SHAFTWALL
