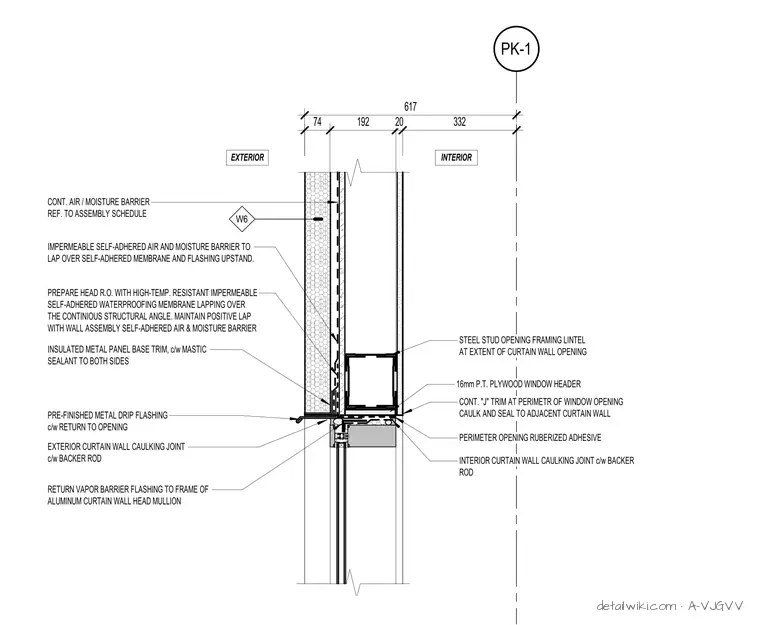

Curtain wall head assembly integrated with cold-formed steel stud opening framing and a structural lintel at grid PK-1. The head rough opening is prepared with high-temperature resistant impermeable self-adhered waterproofing membrane that laps over the continuous structural angle and maintains a positive lap with the wall assembly air and moisture barrier. An insulated metal panel base trim is installed with mastic sealant to both sides above a pre-finished metal drip flashing with a return to the opening. The aluminum curtain wall head mullion connects to a sixteen millimeter pressure-treated plywood window header, with continuous J-trim at the perimeter of the window opening. Exterior and interior joints are sealed with caulking and backer rod, alongside perimeter opening rubberized adhesive and a return vapor barrier flashing to the frame of the aluminum curtain wall head mullion.
PK-1 W6 STEEL STUD OPENING FRAMING LINTEL AT EXTENT OF CURTAIN WALL OPENING CONT. "J" TRIM AT PERIMETR OF WINDOW OPENING CAULK AND SEAL TO ADJACENT CURTAIN WALL 16mm P.T. PLYWOOD WINDOW HEADER PERIMETER OPENING RUBERIZED ADHESIVE CONT. AIR / MOISTURE BARRIER REF. TO ASSEMBLY SCHEDULE INSULATED METAL PANEL BASE TRIM, c/w MASTIC SEALANT TO BOTH SIDES PRE-FINISHED METAL DRIP FLASHING c/w RETURN TO OPENING PREPARE HEAD R.O. WITH HIGH-TEMP. RESISTANT IMPERMEABLE SELF-ADHERED WATERPROOFING MEMBRANE LAPPING OVER THE CONTINIOUS STRUCTURAL ANGLE. MAINTAIN POSITIVE LAP WITH WALL ASSEMBLY SELF-ADHERED AIR & MOISTURE BARRIER INTERIOR CURTAIN WALL CAULKING JOINT c/w BACKER ROD RETURN VAPOR BARRIER FLASHING TO FRAME OF ALUMINUM CURTAIN WALL HEAD MULLION 332 20 192 74 617 IMPERMEABLE SELF-ADHERED AIR AND MOISTURE BARRIER TO LAP OVER SELF-ADHERED MEMBRANE AND FLASHING UPSTAND. EXTERIOR CURTAIN WALL CAULKING JOINT c/w BACKER ROD EXTERIOR INTERIOR
