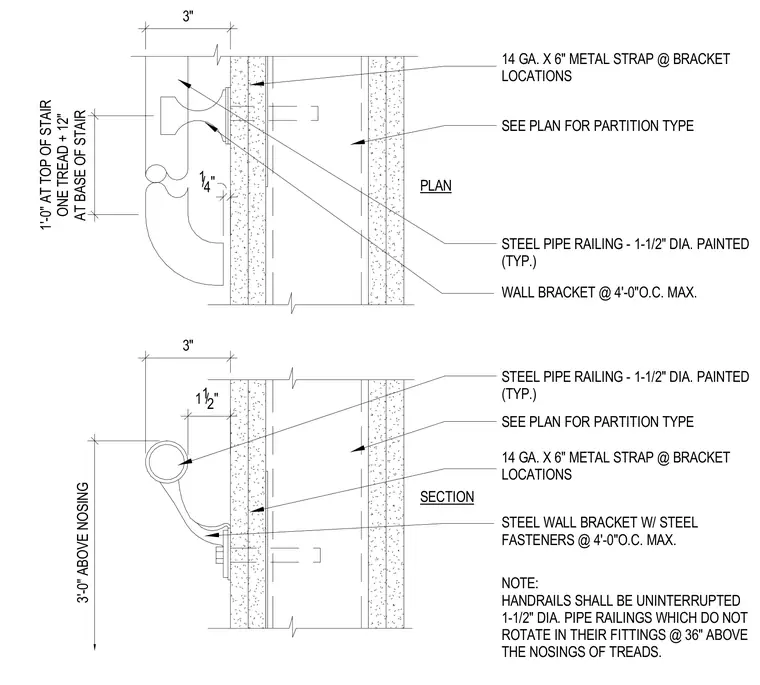

A 1-1/2 inch diameter painted steel pipe handrail mounts to a partition wall using steel wall brackets spaced at 4 feet on center maximum. A 14-gauge by 6-inch metal strap provides backing at bracket locations within the partition assembly. Steel fasteners secure the brackets to the wall. The handrail positions 3 feet above the nosing of stair treads, with extensions required at the top and base of the stair.
3" 3" 1 1 /2" 1/4" 3'-0" ABOVE NOSING 1'-0" AT TOP OF STAIR ONE TREAD + 12" AT BASE OF STAIR STEEL PIPE RAILING - 1-1/2" DIA. PAINTED (TYP.) NOTE: HANDRAILS SHALL BE UNINTERRUPTED 1-1/2" DIA. PIPE RAILINGS WHICH DO NOT ROTATE IN THEIR FITTINGS @ 36" ABOVE THE NOSINGS OF TREADS. SEE PLAN FOR PARTITION TYPE PLAN SECTION WALL BRACKET @ 4'-0"O.C. MAX. 14 GA. X 6" METAL STRAP @ BRACKET LOCATIONS STEEL PIPE RAILING - 1-1/2" DIA. PAINTED (TYP.) STEEL WALL BRACKET W/ STEEL FASTENERS @ 4'-0"O.C. MAX. SEE PLAN FOR PARTITION TYPE 14 GA. X 6" METAL STRAP @ BRACKET LOCATIONS
