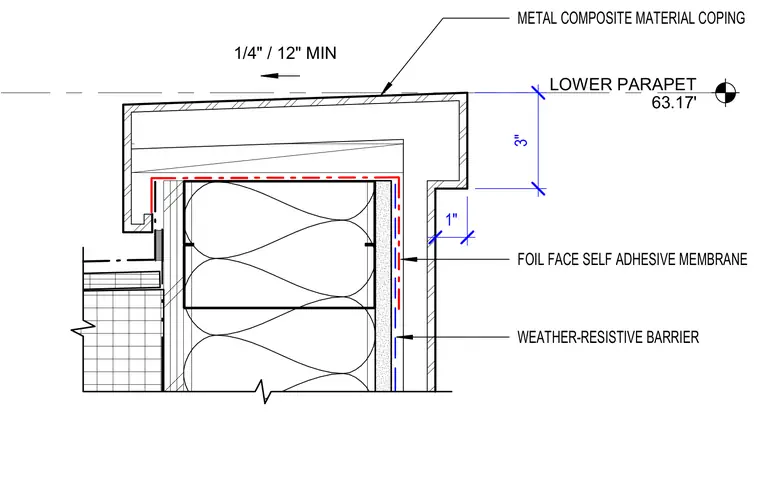

A metal composite material coping caps the lower parapet at elevation 63.17 feet with a minimum one-quarter inch per twelve inches slope. A foil face self-adhesive membrane and weather-resistive barrier protect the underlying framed wall assembly.
LOWER PARAPET 63.17' METAL COMPOSITE MATERIAL COPING FOIL FACE SELF ADHESIVE MEMBRANE WEATHER-RESISTIVE BARRIER 1/4" / 12" MIN 3" 1"
