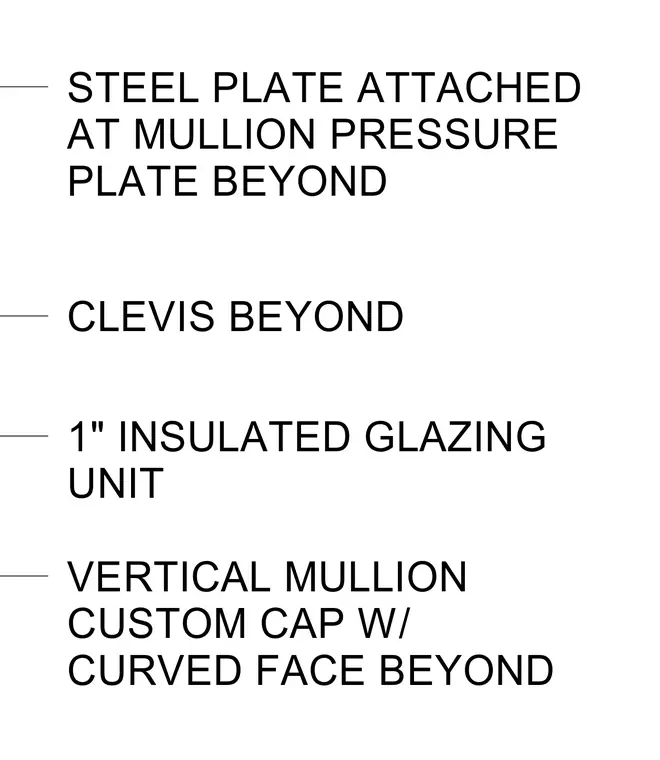

A steel plate is attached to the curtain wall pressure plate beyond, supporting a clevis connection for the canopy structure. The assembly interfaces with a vertical mullion featuring a custom cap with a curved face, located adjacent to a one-inch insulated glazing unit.
VERTICAL MULLION CUSTOM CAP W/ CURVED FACE BEYOND 1" INSULATED GLAZING UNIT STEEL PLATE ATTACHED AT MULLION PRESSURE PLATE BEYOND CLEVIS BEYOND
