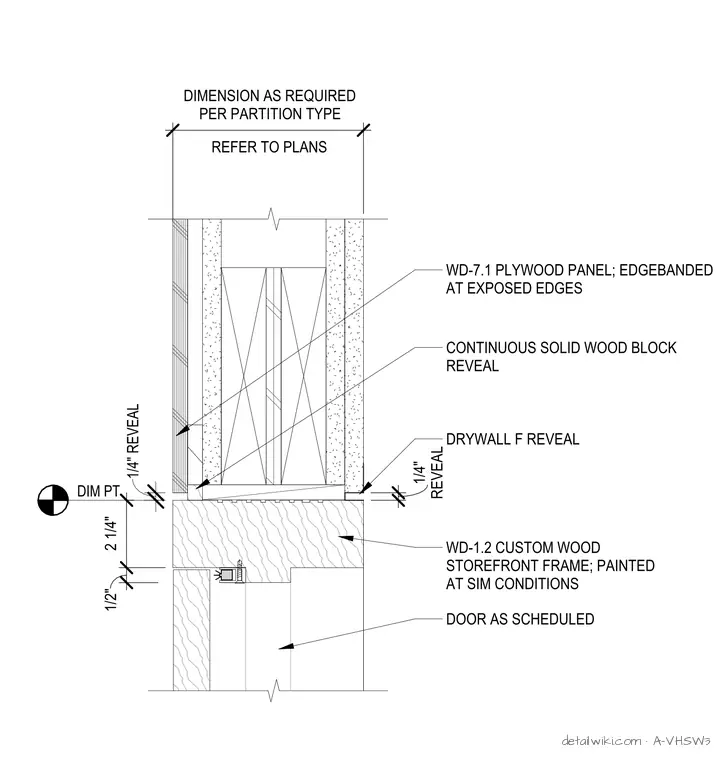

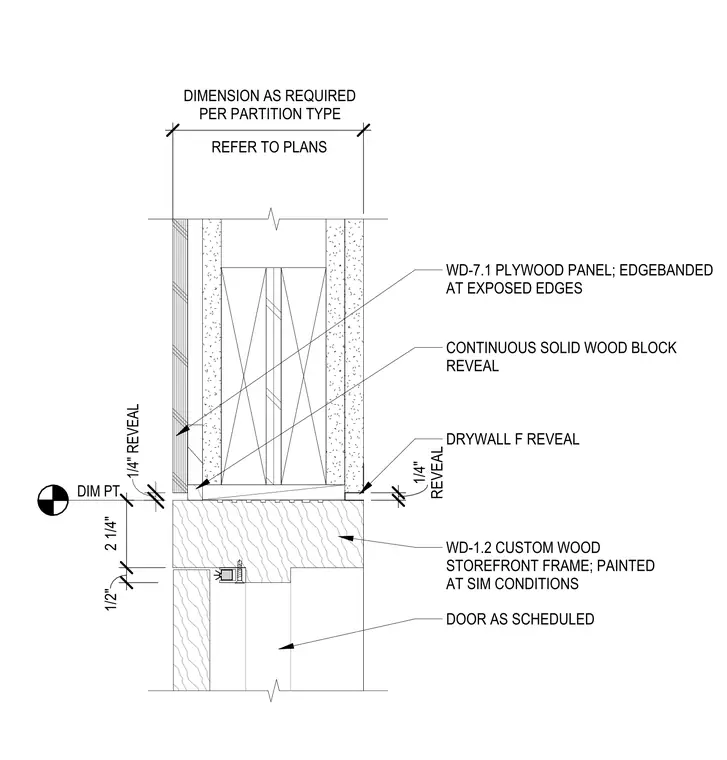

This door head assembly consists of a WD-1.2 custom wood storefront frame supporting a door as scheduled. The frame is finished with a 1/4 inch reveal at the drywall interface using a drywall F-reveal trim. Above the frame, a continuous solid wood block provides a reveal transition to the WD-7.1 plywood panel, which is edgebanded at all exposed edges. The partition wall thickness is dimensioned as required per the specific partition type indicated in the plans.
