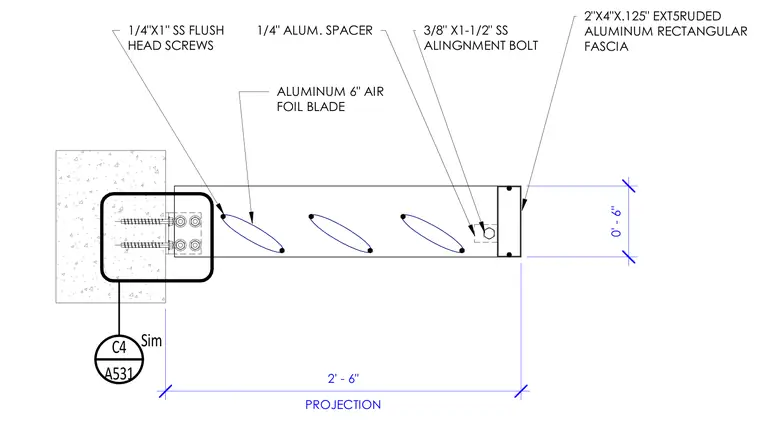

An extruded aluminum rectangular fascia measuring two inches by four inches by one-eighth inch connects to the outer end of the assembly using three-eighths-inch by one-and-one-half-inch stainless steel alignment bolts. Six-inch aluminum airfoil blades are secured with one-quarter-inch by one-inch stainless steel flush head screws and separated by one-quarter-inch aluminum spacers. The entire two-foot-six-inch projection mounts to a concrete substrate using embedded anchor bolts and mounting plates.
PROJECTION 2' - 6" 0' - 6" 1/4"X1" SS FLUSH HEAD SCREWS ALUMINUM 6" AIR FOIL BLADE 3/8" X1-1/2" SS ALINGNMENT BOLT 1/4" ALUM. SPACER 2"X4"X.125" EXT5RUDED ALUMINUM RECTANGULAR FASCIA A531 C4 Sim I 00 ©0 —
