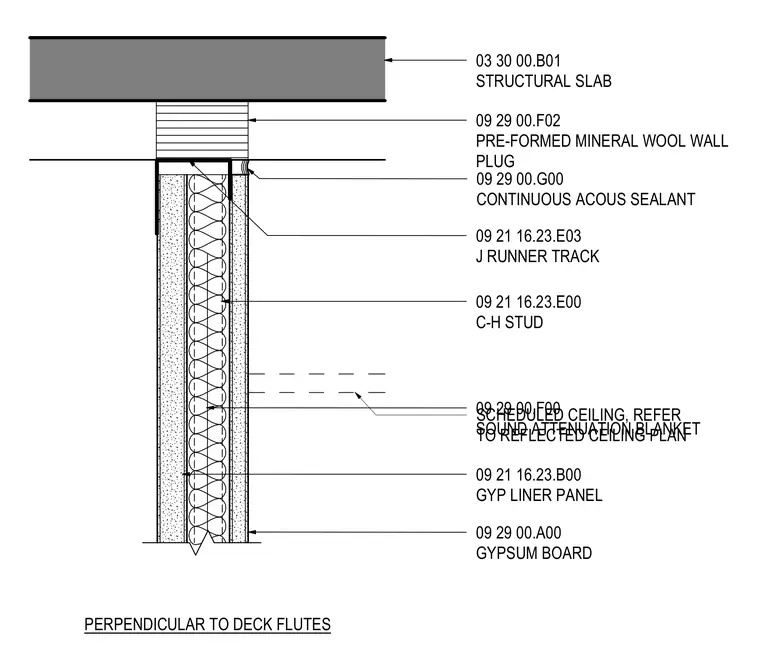

The wall assembly terminates below a structural slab with a J runner track capping C-H studs and gypsum liner panels. A pre-formed mineral wool wall plug fills the gap between the top runner and the underside of the slab. Continuous acoustic sealant is applied at the track intersection for sound isolation. A sound attenuation blanket fills the stud cavity, finished with gypsum board on each side per the scheduled ceiling.
03 30 00.B01 STRUCTURAL SLAB SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN PERPENDICULAR TO DECK FLUTES 09 29 00.A00 GYPSUM BOARD 09 29 00.F00 SOUND ATTENUATION BLANKET 09 21 16.23.E00 C-H STUD 09 21 16.23.E03 J RUNNER TRACK 09 21 16.23.B00 GYP LINER PANEL 09 29 00.F02 PRE-FORMED MINERAL WOOL WALL PLUG 09 29 00.G00 CONTINUOUS ACOUS SEALANT
