Architectural · A-VHDYJ

Enlarged East Wall Gutter - High Point

Materials

Elements

Drainage Facades / Cladding Insulation Parapets Walls Waterproofing / Flashing

About this detail

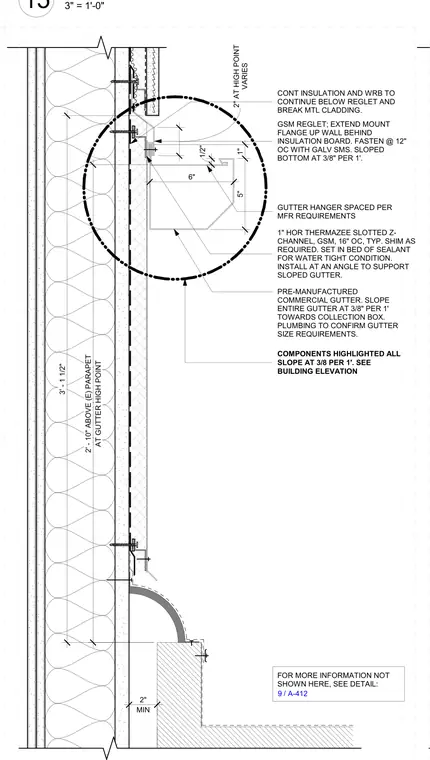

An enlarged east wall gutter high point assembly features a pre-manufactured commercial gutter sloped at 3/8 inch per foot towards a collection box. The gutter mounts to the exterior wall using a galvanized sheet metal reglet with its mounting flange extended up the wall behind the insulation board and fastened at 12 inches on center with galvanized sheet metal screws. Continuous insulation and a weather-resistive barrier continue below the reglet to break the metal cladding. One-inch horizontal Thermazee slotted Z-channels of galvanized sheet metal are spaced at 16 inches on center, shimmed as required, and set in a bed of sealant to maintain a watertight condition while installed at an angle to support the sloped gutter.
