Architectural · A-VHAR6

Accessible Counter and Lavatory Clearances

Materials

About this detail

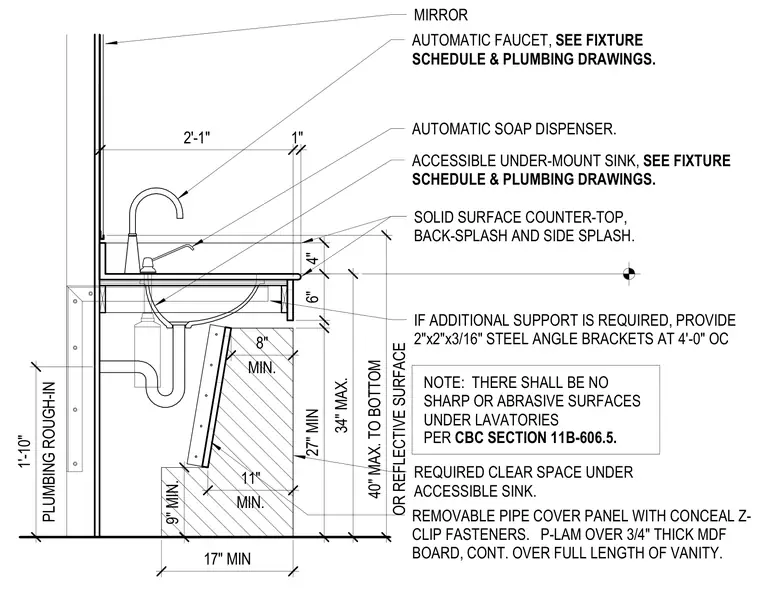

An accessible lavatory and vanity counter assembly is configured to meet ADA and CBC section 11B-606.5 requirements. The solid surface countertop includes a back-splash, side splash, and an accessible under-mount sink paired with an automatic faucet and soap dispenser. Plastic laminate over three-quarter-inch thick medium-density fiberboard runs continuously over the full length of the vanity, supported where necessary by two-inch by two-inch by three-sixteenth-inch steel angle brackets spaced at four feet on center. A removable pipe cover panel with concealed Z-clip fasteners protects plumbing rough-ins while maintaining the required clear knee and toe space underneath. The assembly provides a minimum twenty-seven-inch knee clearance height, a seventeen-inch minimum toe depth, and a maximum thirty-four-inch rim height.
