A solid surface lavatory countertop features an integral sink bowl, side splash, and backsplash set below a mirror. The countertop incorporates a solid surface material with an offset overflow and a radiused outside corner. A wood frame mirror profile detail is included alongside fabrication notes requiring a six-inch profile sample for interior designer approval prior to ordering remaining materials.

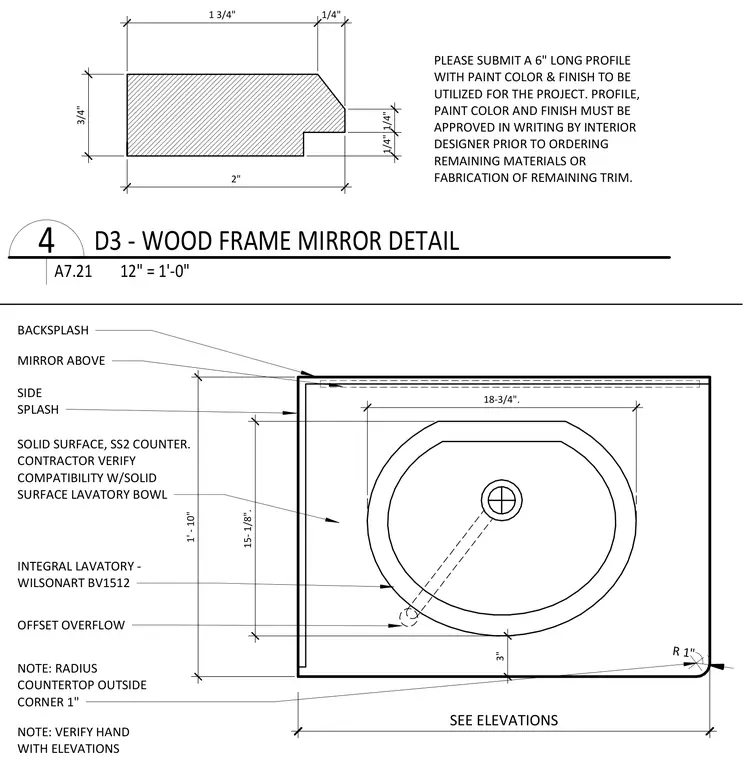

BACKSPLASH MIRROR ABOVE SOLID SURFACE, SS2 COUNTER. CONTRACTOR VERIFY COMPATIBILITY W/SOLID SURFACE LAVATORY BOWL INTEGRAL LAVATORY - WILSONART BV1512 SIDE SPLASH 3" 15- 1/8". SEE ELEVATIONS 1' - 10" 18-3/4". OFFSET OVERFLOW NOTE: RADIUS COUNTERTOP OUTSIDE CORNER 1" NOTE: VERIFY HAND WITH ELEVATIONS R 1" PLEASE SUBMIT A 6" LONG PROFILE WITH PAINT COLOR & FINISH TO BE UTILIZED FOR THE PROJECT. PROFILE, PAINT COLOR AND FINISH MUST BE APPROVED IN WRITING BY INTERIOR DESIGNER PRIOR TO ORDERING REMAINING MATERIALS OR FABRICATION OF REMAINING TRIM. 1 3/4" 1/4" 3/4" 2" 1/4" 1/4" 12" = 1'-0" A7.21 4 D3 - WOOD FRAME MIRROR DETAIL
