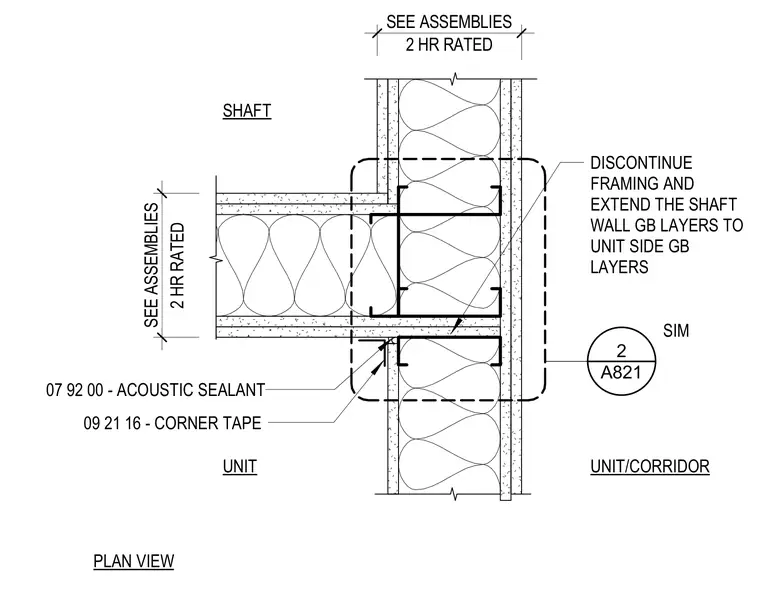

A two-hour rated shaft wall intersects a demising partition with framing discontinued at the junction. Gypsum board layers from the shaft wall extend continuously to meet the gypsum board layers on the unit side. Acoustic sealant is applied at the wall joint, finished with corner tape per section 09 21 16.
UNIT UNIT/CORRIDOR SHAFT 2 HR RATED SEE ASSEMBLIES 2 HR RATED SEE ASSEMBLIES DISCONTINUE FRAMING AND EXTEND THE SHAFT WALL GB LAYERS TO UNIT SIDE GB LAYERS A821 2 SIM 09 21 16 - CORNER TAPE 07 92 00 - ACOUSTIC SEALANT PLAN VIEW
