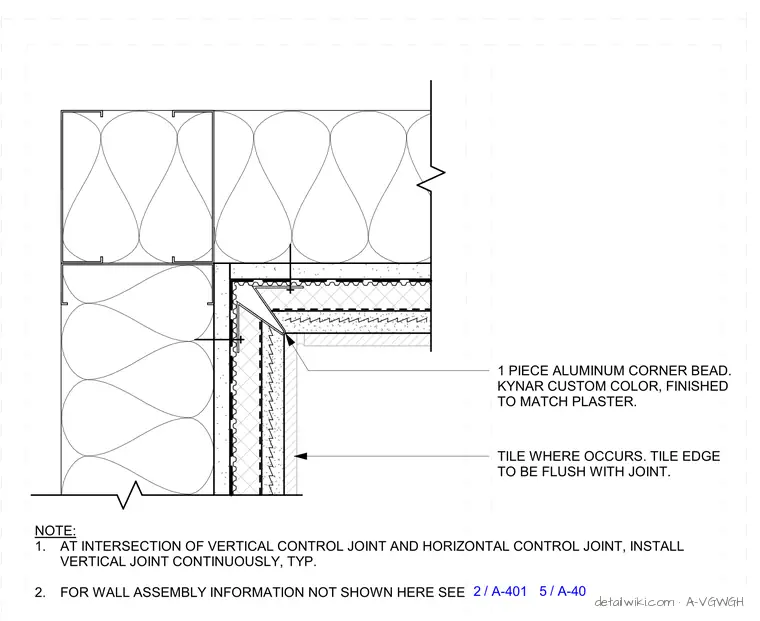

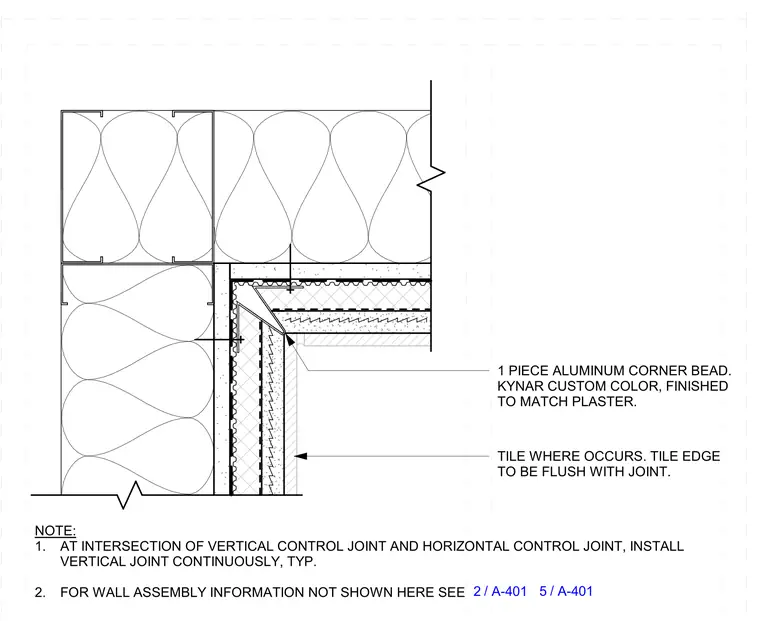

A typical inside corner assembly for plastered and tiled walls features a one-piece aluminum corner bead with a custom Kynar finish matching the adjacent plaster. Tile is installed where indicated, with the tile edge kept flush with the joint. Vertical control joints are installed continuously at intersections with horizontal control joints.
NOTE: 1. AT INTERSECTION OF VERTICAL CONTROL JOINT AND HORIZONTAL CONTROL JOINT, INSTALL VERTICAL JOINT CONTINUOUSLY, TYP. 2. FOR WALL ASSEMBLY INFORMATION NOT SHOWN HERE SEE 1 PIECE ALUMINUM CORNER BEAD. KYNAR CUSTOM COLOR, FINISHED TO MATCH PLASTER. TILE WHERE OCCURS. TILE EDGE TO BE FLUSH WITH JOINT. / 2 A-401 / 5 A-401 EXTEND FINISHED ALUM SHIELD INTO
