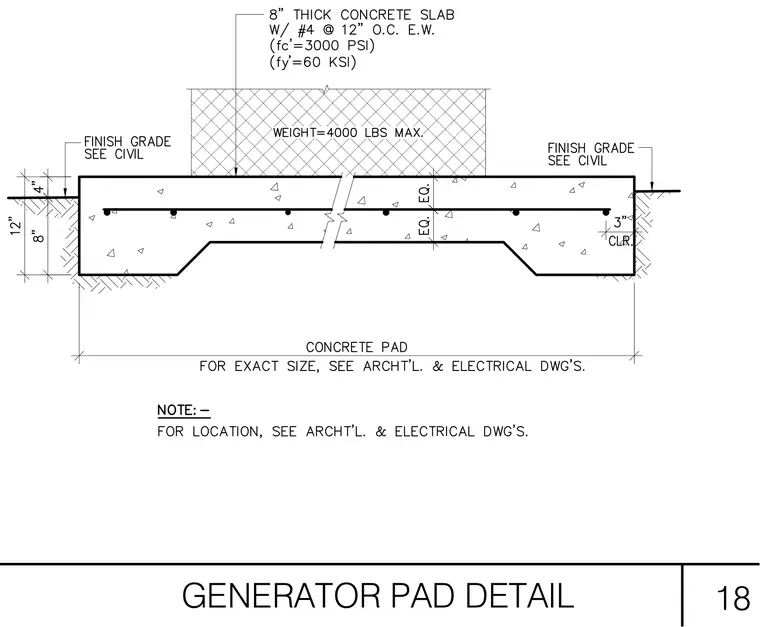

An eight-inch thick concrete slab with a compressive strength of 3000 PSI and yield strength of 60 KSI is reinforced with number 4 bars at twelve inches on center each way. The concrete pad features thickened perimeter edges bearing on compacted subgrade, with finish grade established per civil drawings. The pad is designed for a maximum equipment weight of 4000 pounds, with exact dimensions and location coordinated through architectural and electrical drawings.
