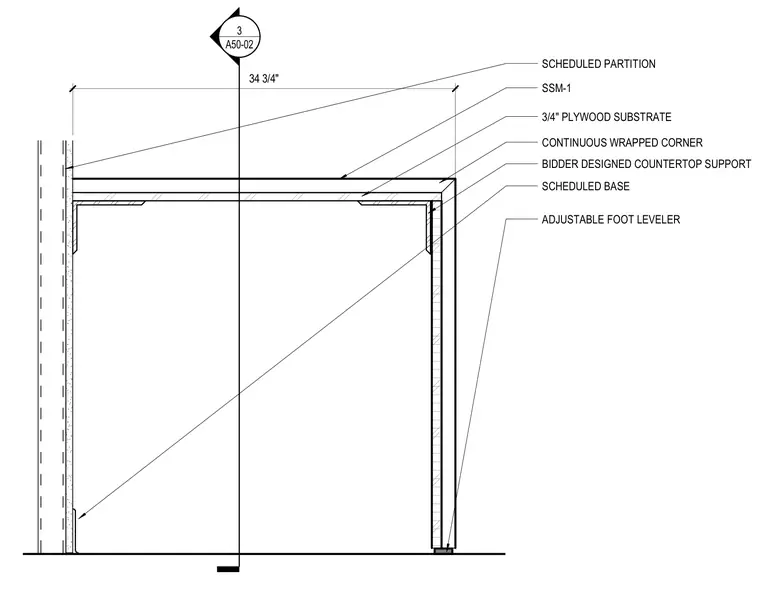

The countertop consists of SSM-1 solid surface material installed over a three-quarter-inch plywood substrate featuring a continuous wrapped corner. The assembly is supported by a bidder-designed countertop support bracket attached to a scheduled partition on one side. The base of the millwork features a scheduled base and incorporates adjustable foot levelers for height adjustment.
3 A50-02 SSM-1 3/4" PLYWOOD SUBSTRATE CONTINUOUS WRAPPED CORNER BIDDER DESIGNED COUNTERTOP SUPPORT SCHEDULED BASE SCHEDULED PARTITION 34 3/4" ADJUSTABLE FOOT LEVELER
