Architectural · A-VGHVW

Canopy Connection and Vertical Mullion at Curtain Wall

Materials

Steel Glass / Glazing Aluminum

Elements

Walls Curtain Walls Roofs Canopies Connections / Plates

Connections

Welded Connection

About this detail

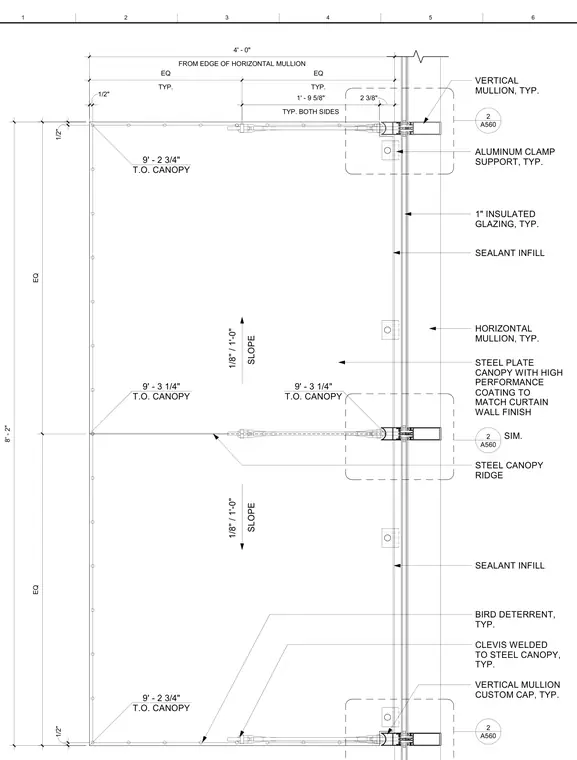

A steel plate canopy intersects a curtain wall system featuring one-inch insulated glazing units. The steel canopy plate incorporates a high-performance coating matched to the curtain wall finish and slopes at one-eighth inch per foot from the edge of the horizontal mullion. A clevis is welded to the steel canopy and secured with an aluminum clamp support tied back to the vertical and horizontal mullions. Sealant infill is provided at joints, and bird deterrents are integrated where required. The assembly maintains custom vertical mullion caps and accommodates the specified canopy ridge elevations.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
