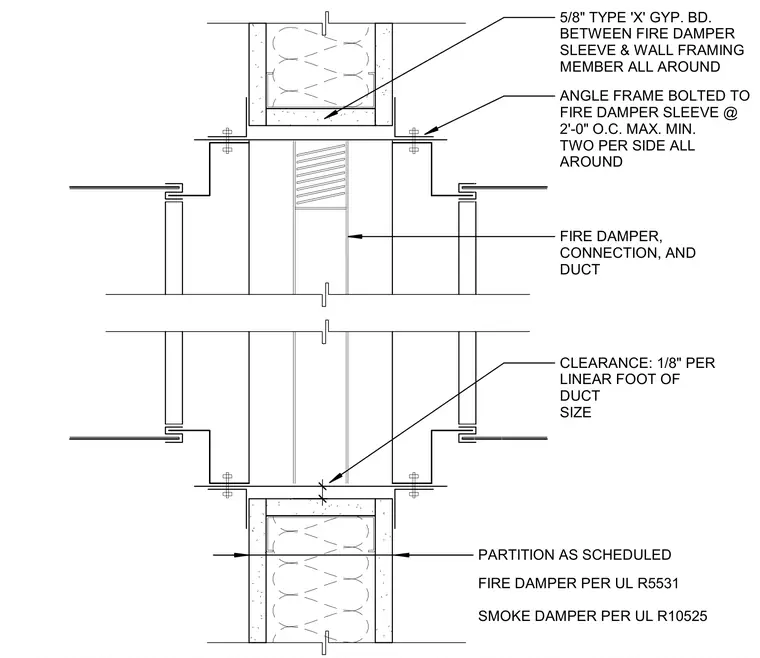

A fire and smoke damper is integrated into a scheduled partition wall with a 5/8-inch Type X gypsum board installed between the damper sleeve and wall framing member all around. An angle frame is bolted to the fire damper sleeve at a maximum spacing of 2'-0" on center with a minimum of two bolts per side. A clearance of 1/8" per linear foot of duct size is maintained for the damper, connection, and duct. The fire damper complies with UL R5531 and the smoke damper complies with UL R10525.
PARTITION AS SCHEDULED FIRE DAMPER PER UL R5531 SMOKE DAMPER PER UL R10525 ANGLE FRAME BOLTED TO FIRE DAMPER SLEEVE @ 2'-0" O.C. MAX. MIN. TWO PER SIDE ALL AROUND FIRE DAMPER, CONNECTION, AND DUCT CLEARANCE: 1/8" PER LINEAR FOOT OF DUCT SIZE 5/8" TYPE 'X' GYP. BD. BETWEEN FIRE DAMPER SLEEVE & WALL FRAMING MEMBER ALL AROUND .
