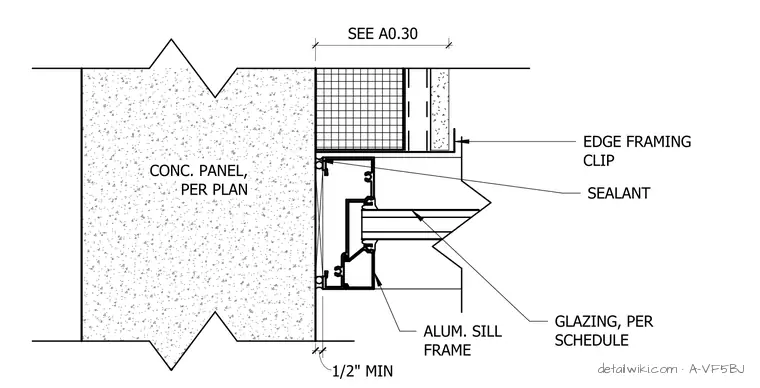

The aluminum storefront sill frame is positioned against a concrete panel, maintaining a minimum one-half inch clearance. The frame is secured to the concrete substrate using an edge framing clip. Sealant is applied at the interface between the aluminum frame and the concrete panel. The glazing is installed within the aluminum frame as specified in the project schedule.
Text on the drawing
ALUM. SILL FRAME GLAZING, PER SCHEDULE CONC. PANEL, PER PLAN SEALANT EDGE FRAMING CLIP SEE A0.30
