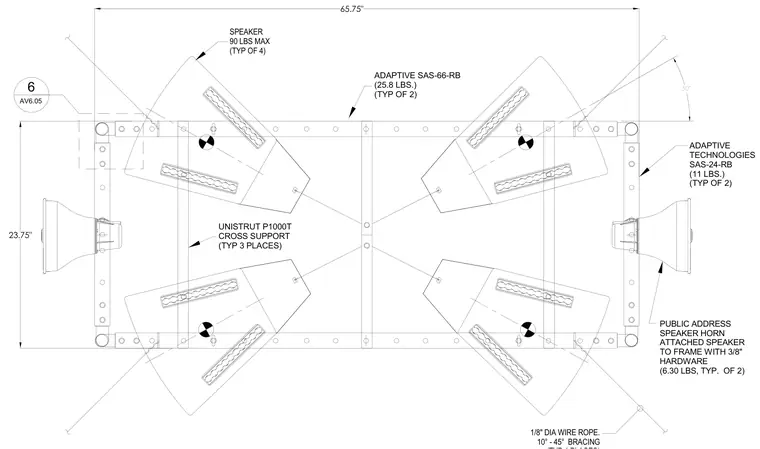

A speaker mounting assembly measures sixty-five and three-quarter inches by twenty-three and three-quarter inches. Four ninety-pound maximum speakers are supported by a frame incorporating Unistrut P1000T cross supports in three places. The assembly utilizes two Adaptive SAS-66-RB units weighing twenty-five and eight-tenths pounds each and two Adaptive Technologies SAS-24-RB units weighing eleven pounds each. Public address speaker horns attach to the frame using three-eighths-inch hardware. One-eighth-inch diameter wire ropes provide ten to forty-five degree seismic or lateral bracing.
65.75" 23.75" AV6.05 30° ADAPTIVE SAS-66-RB (25.8 LBS.) (TYP OF 2) ADAPTIVE TECHNOLOGIES SAS-24-RB (11 LBS.) (TYP OF 2) SPEAKER 90 LBS MAX (TYP OF 4) UNISTRUT P1000T CROSS SUPPORT (TYP 3 PLACES) PUBLIC ADDRESS SPEAKER HORN ATTACHED SPEAKER TO FRAME WITH 3/8" HARDWARE (6.30 LBS, TYP. OF 2) 1/8" DIA WIRE ROPE. 10° - 45° BRACING 6
