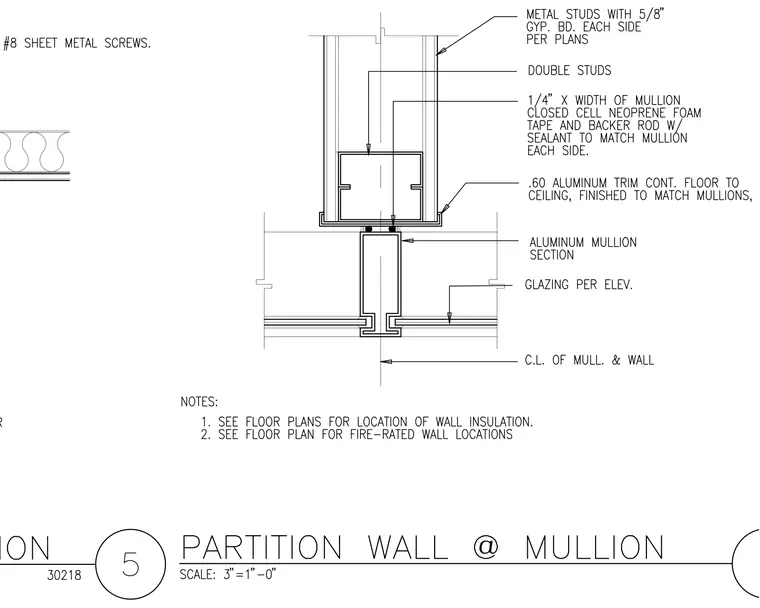

A metal stud partition wall meets an aluminum curtain wall mullion with double studs and five-eighths inch gypsum board on each side. A continuous sixty-thousandths aluminum trim piece runs floor to ceiling, finished to match the mullions. A quarter-inch closed cell neoprene foam tape and backer rod with sealant matches the mullions on each side. Glazing is installed per elevations, aligned with the centerline of the mullion and wall.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
