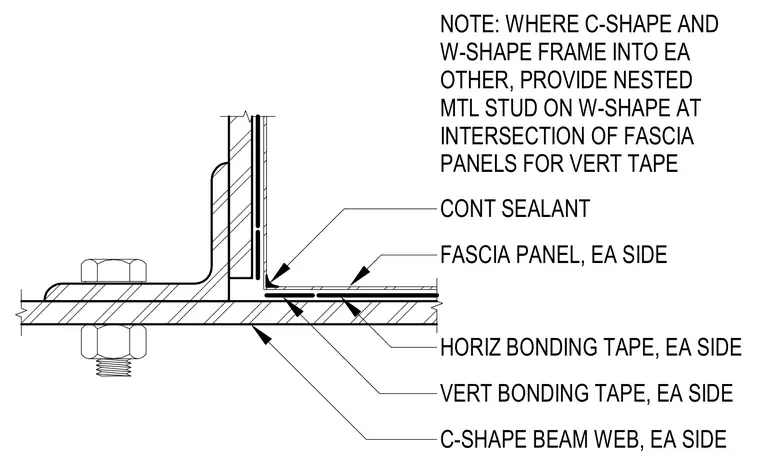

Fascia panels install at the building corner meeting each other over C-shape beam webs on each side. Continuous sealant is applied at the internal corner junction between the panels. Horizontal and vertical bonding tapes secure the fascia panels to the C-shape beam webs on each side. Where C-shape and wide-flange beams frame into each other, a nested metal stud is provided on the wide-flange beam at the intersection of the fascia panels to receive the vertical tape.
FASCIA PANEL, EA SIDE HORIZ BONDING TAPE, EA SIDE C-SHAPE BEAM WEB, EA SIDE VERT BONDING TAPE, EA SIDE CONT SEALANT NOTE: WHERE C-SHAPE AND W-SHAPE FRAME INTO EA OTHER, PROVIDE NESTED MTL STUD ON W-SHAPE AT INTERSECTION OF FASCIA PANELS FOR VERT TAPE
