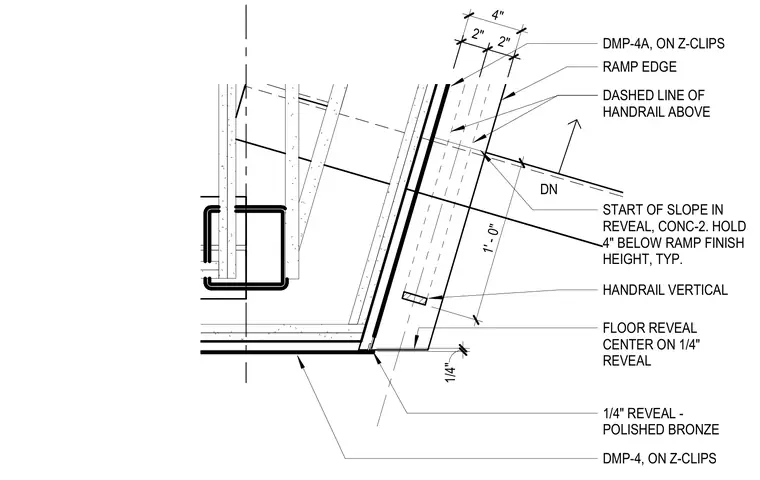

The concrete ramp edge features a finished panel cladding of DMP-4 and DMP-4A mounted on Z-clips with a one-quarter-inch polished bronze reveal. A floor reveal is centered on a one-quarter-inch joint, with the start of the slope held four inches below the ramp finish height typically. The overhead handrail is indicated with dashed lines above, alongside a vertical handrail support member.
1 ' - 0 " RAMP EDGE DASHED LINE OF HANDRAIL ABOVE HANDRAIL VERTICAL DMP-4A, ON Z-CLIPS 1/4" REVEAL - POLISHED BRONZE DMP-4, ON Z-CLIPS START OF SLOPE IN REVEAL, CONC-2. HOLD 4" BELOW RAMP FINISH HEIGHT, TYP. DN 1 / 4 " FLOOR REVEAL CENTER ON 1/4" REVEAL 4 " 2 " 2 "
