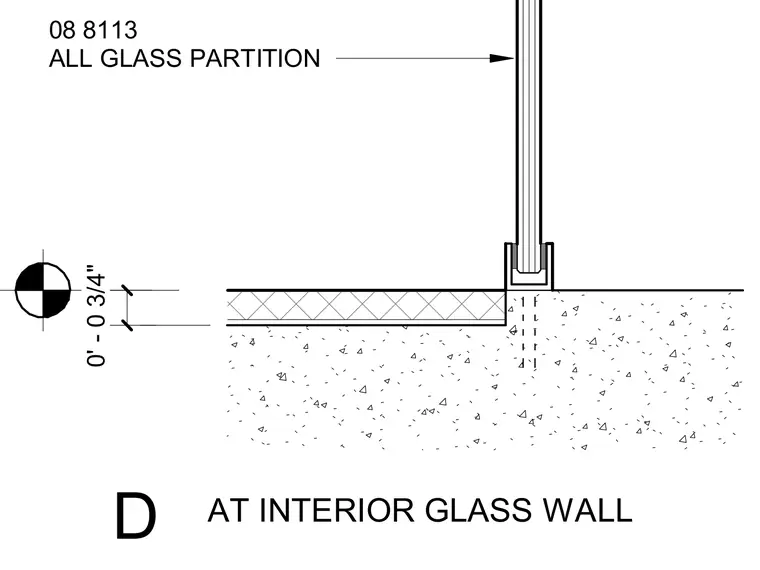

An all glass partition rests in a metal U-channel base track anchored to a concrete floor slab. The floor assembly includes a finish layer above the structural concrete slab, maintaining a specified thickness dimension alongside the partition base. The glass panel is seated cleanly within the perimeter channel framing.
